CC1190RGVT - Texas Instruments

Description: Texas Instruments CC1190RGVT, RF Switch 950MHz Single SPDT 15dB Isolation IEEE 802.15.4 2 → 3.7 V 16-Pin VQFN

Download CC1190RGVT Model

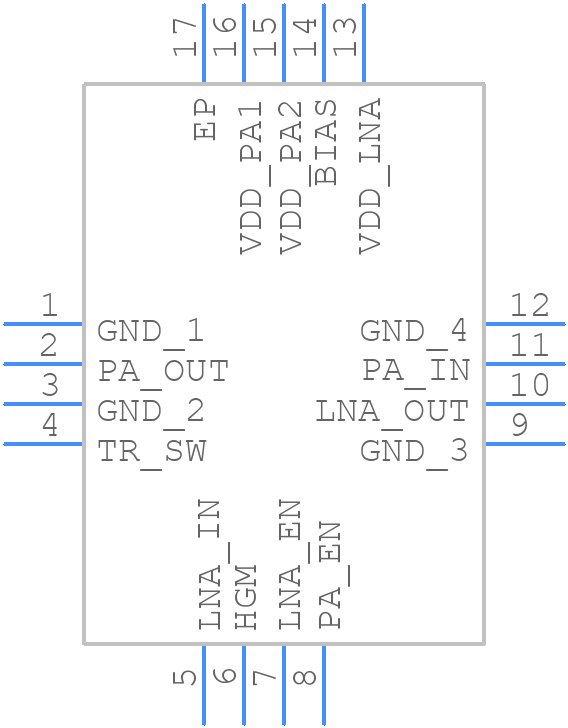

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CC1190RGVT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGV (S-PVQFN-N16)
click to zoom
3D Models
CC1190RGVT - Texas Instruments  - 3D model - Quad Flat No-Lead - RGV (S-PVQFN-N16)
click to zoom

CC1190RGVT Details

  • Manufacturer Part Number:

    CC1190RGVT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

CC1190RGVT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm impedance matching for optimal performance.
  • Use the lowest possible voltage supply (1.8V) and optimize the transmit power level. Disable unnecessary blocks and use the power-down mode when not transmitting or receiving.
  • The maximum transmit power is +20 dBm, but this may vary depending on the frequency band and antenna impedance matching.
  • Implement error correction mechanisms such as FEC (Forward Error Correction) and CRC (Cyclic Redundancy Check) to detect and correct errors. Use a reliable modulation scheme such as GFSK or OQPSK.
  • Yes, CC1190RGVT supports frequency hopping with a settling time of < 100 us. Use the built-in synthesizer and PLL to switch between frequencies.
