Texas Instruments provides a recommended PCB layout guide in their application note AN043, which includes guidelines for component placement, routing, and grounding to ensure optimal performance and minimize noise.
The CC1260RGZR is a multi-band device that can operate in various frequency bands. Configuration is done through the device's registers, and Texas Instruments provides a detailed guide on how to configure the device for different frequency bands in their documentation, including the CC1260RGZR datasheet and application notes.
The maximum transmit power of the CC1260RGZR is +20 dBm, but this can be limited by the device's power amplifier and the specific application. It's recommended to consult the datasheet and application notes for more information on transmit power and how to optimize it for specific use cases.
Frequency hopping can be implemented using the CC1260RGZR's built-in frequency synthesizer and the device's registers. Texas Instruments provides examples and guidelines on how to implement frequency hopping in their application notes, including AN043 and AN049.
The power consumption of the CC1260RGZR varies depending on the operating mode. Texas Instruments provides detailed information on power consumption in the datasheet, including typical current consumption values for different operating modes, such as transmit, receive, and sleep modes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC1260RGZR Overview

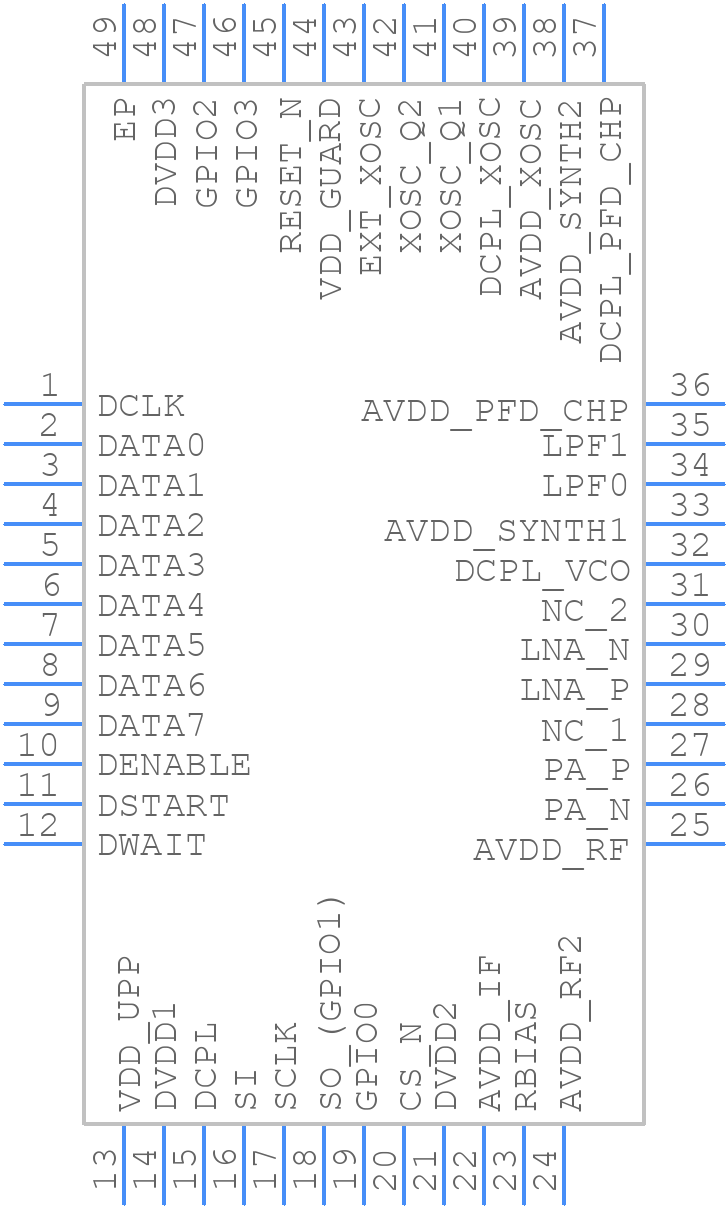

Use the download button to access the CC1260RGZR schematic symbol, PCB footprint, and 3D model.
