Part Image

CC1310F128RSMR - Texas Instruments

Description: SimpleLink™ Sub-1 GHz Ultra-Low Power Wireless Microcontroller

Download CC1310F128RSMR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

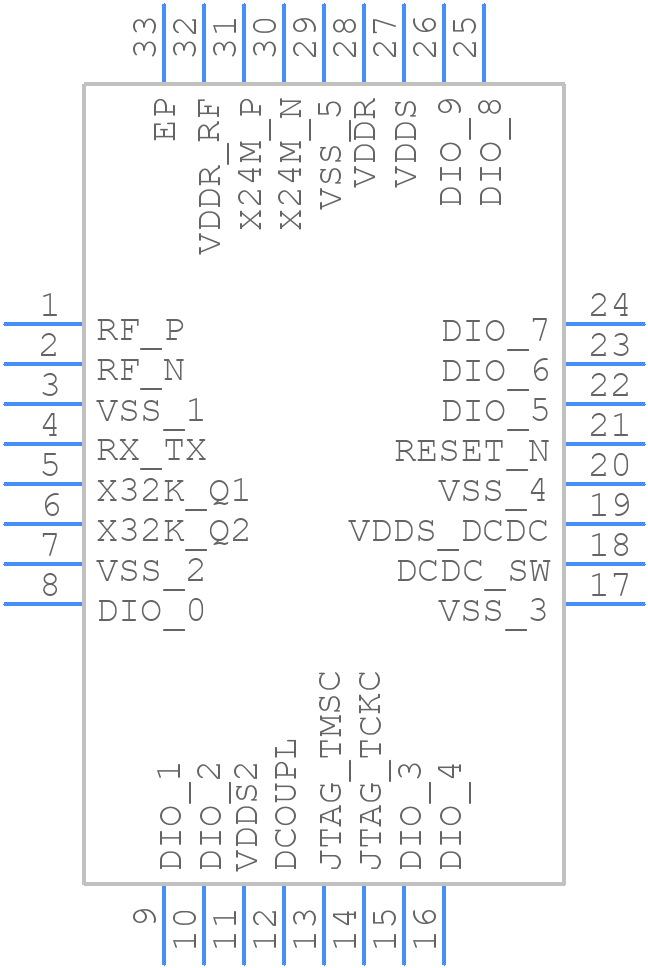

CC1310F128RSMR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC1310F128RSMR - Texas Instruments PCB footprint - Other - Other - RSM0032B
click to zoom
3D Models
CC1310F128RSMR - Texas Instruments - 3D model - Other - RSM0032B
click to zoom

CC1310F128RSMR Details

  • Manufacturer Part Number:

    CC1310F128RSMR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • CPU Family:

    CORTEX-M3

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    28672

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.8 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

CC1310F128RSMR Frequently Asked Questions (FAQs)

  • The maximum transmit power of the CC1310F128RSMR is +14 dBm.
  • To optimize the antenna design, use a 50-ohm antenna impedance, and consider using a PCB antenna or an external antenna with a good radiation pattern. Also, ensure the antenna is properly matched to the CC1310F128RSMR's RF output.
  • The recommended crystal oscillator frequency for the CC1310F128RSMR is 24 MHz or 32 kHz, depending on the application requirements.
  • To implement a reliable wireless communication link, ensure proper antenna design, use a robust modulation scheme, implement error correction mechanisms, and consider using frequency hopping or spread spectrum techniques.
  • The power consumption of the CC1310F128RSMR varies depending on the operating mode. In RX mode, it consumes around 5.5 mA, in TX mode, it consumes around 31 mA, and in sleep mode, it consumes around 0.5 μA.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC1310F128RSMR Overview

Use the download button to access the CC1310F128RSMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC131, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
