Texas Instruments provides a recommended PCB layout guide for the CC1310F64RGZT in the 'CC1310 SimpleLink™ Wireless MCU PCB Layout Guidelines' document (SWRU593). It's essential to follow this guide to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize power consumption, use the device's low-power modes (e.g., shutdown, standby, or hibernate) when not transmitting or receiving data. Additionally, adjust the radio frequency (RF) output power, use a low-power oscillator, and optimize the firmware to minimize CPU activity. Refer to the 'CC1310 Power Management' application note (SWRA477) for more details.
The CC1310F64RGZT has an operating temperature range of -40°C to 85°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to ensure proper thermal management and consider temperature compensation in your design.
Yes, the CC1310F64RGZT can be used with an external antenna. However, it's crucial to follow the recommended antenna design and layout guidelines to ensure optimal performance and minimize detuning. Texas Instruments provides antenna design guidelines in the 'CC1310 Antenna Design Guide' (SWRU592).
The CC1310F64RGZT supports secure boot and firmware updates through its ROM-based bootloader and the SimpleLink™ CC13xx and CC26xx Software Development Kit (SDK). Refer to the 'CC1310 Secure Boot and Firmware Update' application note (SWRA479) for a detailed guide on implementing secure boot and firmware updates.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC1310F64RGZT Overview

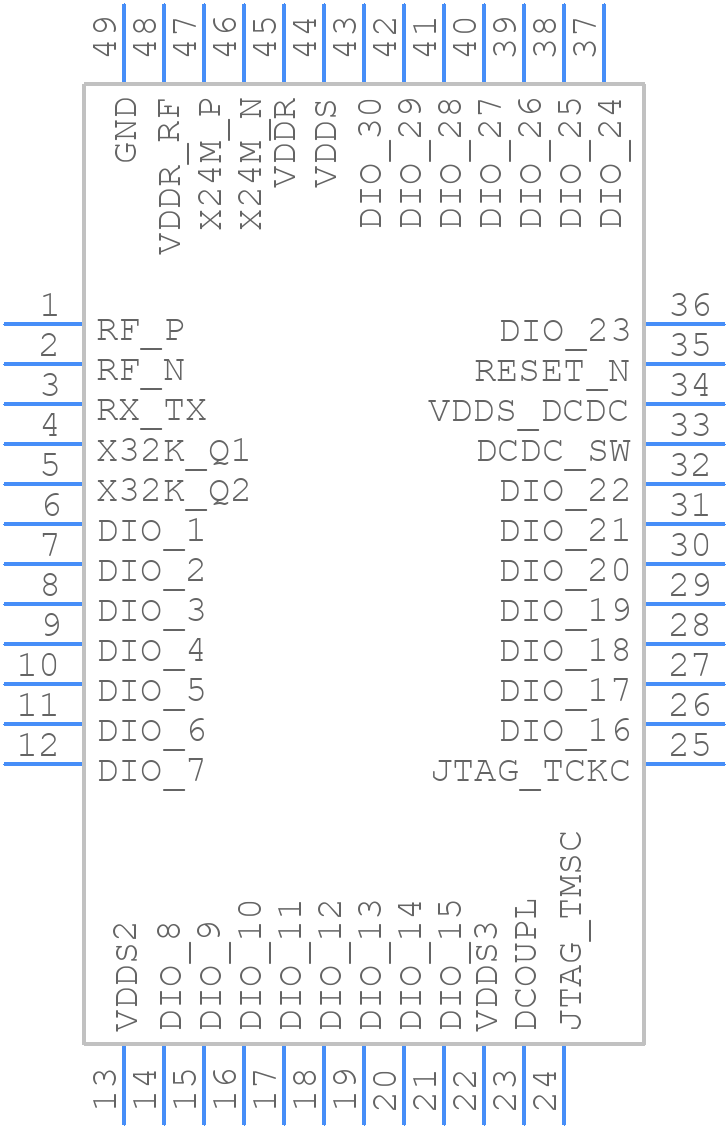

Use the download button to access the CC1310F64RGZT schematic symbol, PCB footprint, and 3D model.
