Texas Instruments provides a recommended PCB layout guide for the CC1310F64RSMR in the 'CC1310 SimpleLink™ Multiband CC1310F64RSMR PCB Layout Guide' document. It's essential to follow this guide to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize power consumption, use the device's low-power modes (e.g., shutdown, standby, and sleep modes) and adjust the radio's transmission power and data rate according to your application's requirements. Additionally, use the device's built-in power management features, such as the Power Management Controller (PMC), to minimize power consumption.
The CC1310F64RSMR is rated for operation from -40°C to 85°C. However, the device's performance and reliability may degrade if operated outside this range. It's essential to ensure the device is operated within the recommended temperature range to ensure optimal performance and reliability.
To implement antenna diversity, you'll need to use an external antenna switch and connect it to the CC1310F64RSMR's antenna pins. You'll also need to modify the device's firmware to support antenna diversity. Texas Instruments provides example code and application notes to help with implementation.
The CC1310F64RSMR supports data transfer rates up to 2 Mbps in the 2.4 GHz band and up to 1 Mbps in the sub-1 GHz band. However, the actual data transfer rate may vary depending on the specific application, environment, and radio frequency (RF) conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC1310F64RSMR Overview

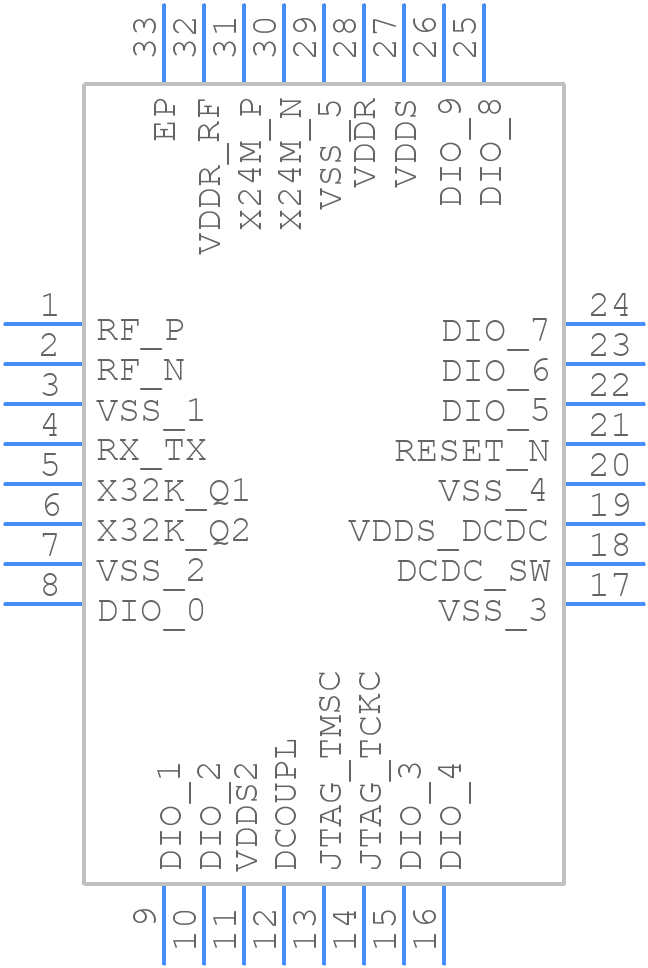

Use the download button to access the CC1310F64RSMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC131,
