CC1350F128RHBT - Texas Instruments

Description: SimpleLink Ultra-Low Power Dual Band Wireless Microcontroller

Download CC1350F128RHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

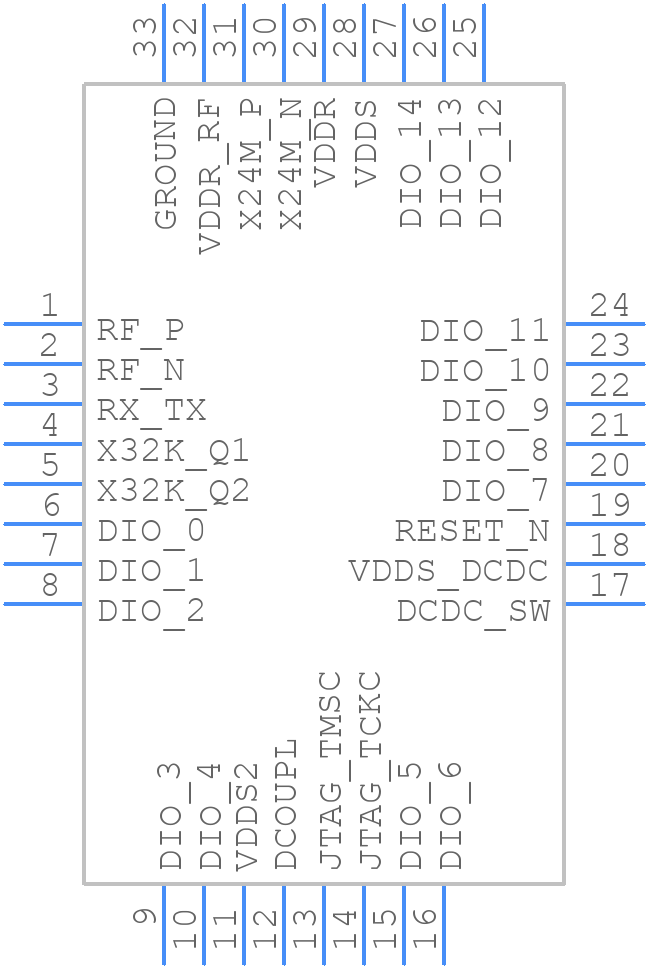

CC1350F128RHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC1350F128RHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
CC1350F128RHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

CC1350F128RHBT Details

  • Manufacturer Part Number:

    CC1350F128RHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Date Of Intro:

    2016-12-12

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Has ADC:

    YES

  • Additional Feature:

    32.768KHZ NOMINAL CRYSTAL CLOCK AVAILABLE

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    48 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    15

  • Number of Terminals:

    32

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    28672

  • ROM (words):

    131072

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1 mm

  • Speed:

    48 MHz

  • Supply Voltage-Max:

    3.8 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

CC1350F128RHBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide for the CC1350F128RHBT in the 'CC1350 SimpleLink™ Wireless MCU PCB Layout Guide' document. It's essential to follow this guide to ensure optimal performance and minimize electromagnetic interference (EMI).
  • To optimize power consumption, use the device's low-power modes (e.g., shutdown, standby, and hibernate) and adjust the clock frequency according to your application's requirements. Additionally, use the Power Management Module (PMM) to control the power domains and reduce power consumption.
  • The maximum transmission power of the CC1350F128RHBT is +20 dBm (100 mW) for the 2.4 GHz frequency band and +14 dBm (25 mW) for the 868/915 MHz frequency band. However, the actual transmission power can be adjusted using the device's transmit power control feature.
  • Texas Instruments provides a Secure Boot and Firmware Update solution for the CC1350F128RHBT. This solution uses cryptographic techniques to ensure the authenticity and integrity of the firmware. Refer to the 'CC1350 Secure Boot and Firmware Update' application note for implementation details.
  • The CC1350F128RHBT is rated for operation in the industrial temperature range of -40°C to +85°C. However, the device can be operated at temperatures up to +105°C for short periods (e.g., during manufacturing testing).
