CC1352R1F3RGZR - Texas Instruments

Description: SimpleLink™ multi-band wireless MCU

Download CC1352R1F3RGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

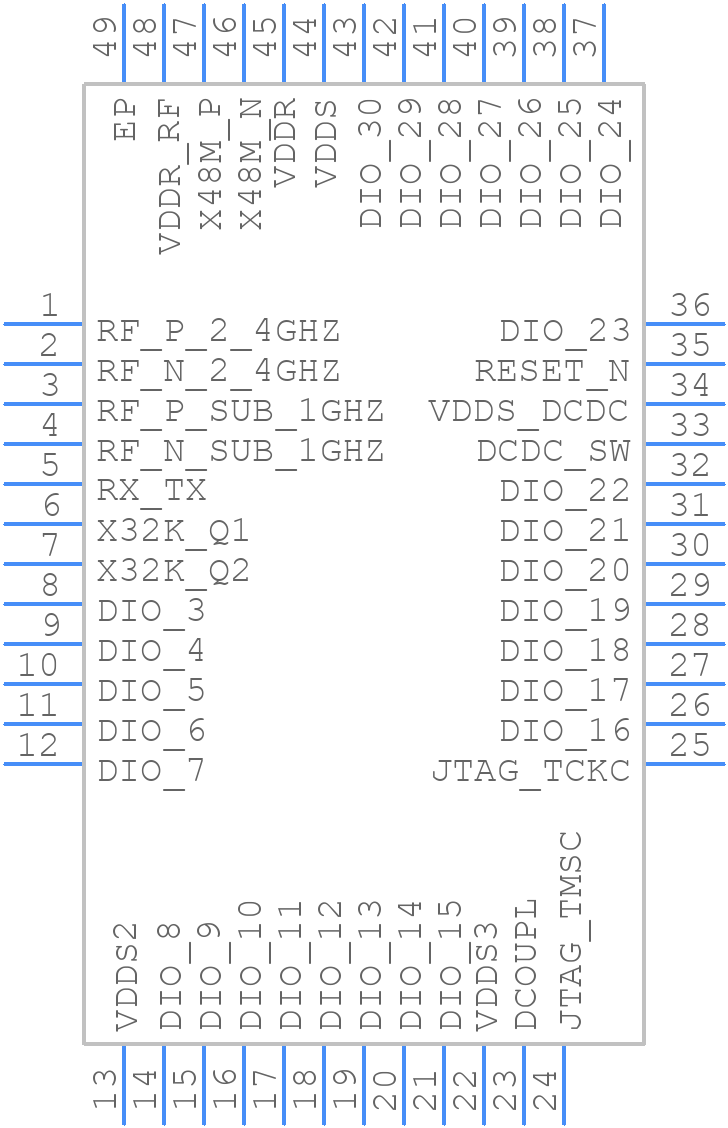

CC1352R1F3RGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC1352R1F3RGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VQFN (48)
click to zoom
3D Models
CC1352R1F3RGZR - Texas Instruments - 3D model - Quad Flat No-Lead - VQFN (48)
click to zoom

CC1352R1F3RGZR Details

  • Manufacturer Part Number:

    CC1352R1F3RGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Date Of Intro:

    2018-01-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Has ADC:

    YES

  • Additional Feature:

    32.768KHZ NOMINAL CRYSTAL CLOCK AVAILABLE

  • Bit Size:

    32

  • Clock Frequency-Max:

    48 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    28

  • Number of Terminals:

    48

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    81920

  • ROM (words):

    360448

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1 mm

  • Speed:

    48 MHz

  • Supply Voltage-Max:

    3.8 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

CC1352R1F3RGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide for the CC1352R1F3RGZR in the 'CC1352R1F3RGZR PCB Layout Guidelines' document. It's essential to follow this guide to ensure optimal performance and minimize electromagnetic interference (EMI).
  • To optimize the CC1352R1F3RGZR's RF performance, ensure that the PCB layout is optimized for RF, use a good quality antenna, and follow the recommended component values and placement. Additionally, use the TI-provided RF calibration tool to optimize the device's RF settings.
  • The CC1352R1F3RGZR has an operating temperature range of -40°C to 85°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.
  • Texas Instruments provides a Secure Boot and Firmware Update guide for the CC1352R1F3RGZR. This guide outlines the steps to implement secure boot and firmware updates using the TI-provided tools and software development kits (SDKs).
  • The CC1352R1F3RGZR has a low power consumption of 5.5mA in receive mode and 20mA in transmit mode. However, the actual power consumption depends on the specific application, operating frequency, and data transmission rate. Refer to the datasheet for more detailed power consumption characteristics.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC1352R1F3RGZR Overview

Use the download button to access the CC1352R1F3RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC135, or try a keyword search, such as Microcontrollers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
