Texas Instruments provides a recommended PCB layout guide in the CC2340R52E0RKPR Design and Operation Guide (SWRU593) document, which includes guidelines for component placement, routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
The CC2340R52E0RKPR has various power modes, including shutdown, sleep, and hibernate modes. To configure the device for optimal power consumption, refer to the Power Management section in the CC2340R52E0RKPR datasheet and the CC2340R52E0RKPR Power Management Guide (SWRU592) document, which provides guidelines for configuring the device's power modes and optimizing power consumption.
Texas Instruments recommends using a 2.4-GHz monopole antenna or a 2.4-GHz dipole antenna with the CC2340R52E0RKPR. The CC2340R52E0RKPR Antenna Selection and Design Guide (SWRU591) document provides guidelines for selecting and designing antennas for optimal performance.
The CC2340R52E0RKPR supports secure boot and secure firmware updates through its TrustZone-based security architecture. Refer to the CC2340R52E0RKPR Security Guide (SWRU594) document, which provides guidelines for implementing secure boot and secure firmware updates, including cryptographic key management and secure firmware image creation.
The CC2340R52E0RKPR has a maximum junction temperature of 125°C. To ensure reliable operation, it is essential to implement proper thermal management, including heat sinking, thermal interface materials, and airflow management. Refer to the CC2340R52E0RKPR Thermal Design Guide (SWRU595) document for guidelines on thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC2340R52E0RKPR Overview

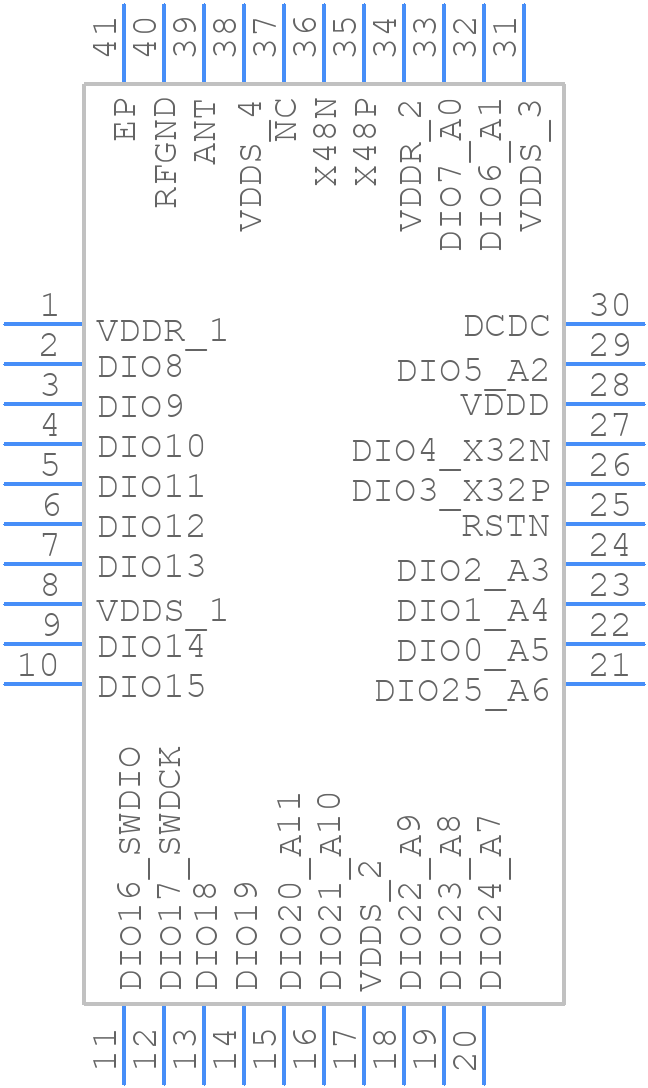

Use the download button to access the CC2340R52E0RKPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC234,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
