CC2430F128RTCR - Texas Instruments

Description: RF System on a Chip - SoC TAPE AND REEL CC2430 128Kb Chip

Download CC2430F128RTCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

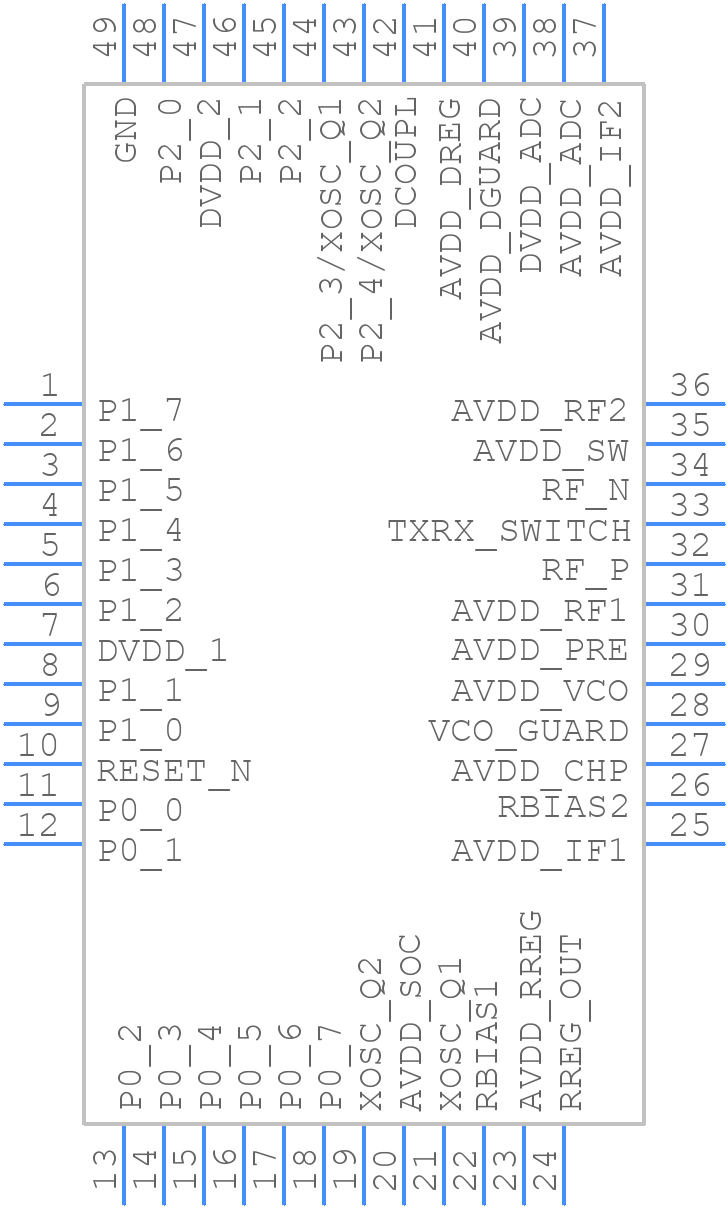

CC2430F128RTCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC2430F128RTCR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTC (S-PVQFN-N48
click to zoom
3D Models
CC2430F128RTCR - Texas Instruments - 3D model - Quad Flat No-Lead - RTC (S-PVQFN-N48
click to zoom

CC2430F128RTCR Details

  • Manufacturer Part Number:

    CC2430F128RTCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

CC2430F128RTCR Frequently Asked Questions (FAQs)

  • The maximum transmission power of the CC2430F128RTCR is +4.5 dBm.
  • Frequency hopping can be implemented using the device's built-in frequency synthesizer and the IEEE 802.15.4 MAC layer. The CC2430F128RTCR supports 16 channels in the 2.4 GHz band, and frequency hopping can be achieved by switching between these channels using the device's channel selection feature.
  • The current consumption of the CC2430F128RTCR varies depending on the operating mode. In transmit mode, the current consumption is approximately 29 mA. In receive mode, it is approximately 26 mA. In idle mode, it is approximately 0.2 mA, and in sleep mode, it is approximately 0.02 mA.
  • The CC2430F128RTCR has a built-in AES encryption engine that can be used to implement AES-128 encryption. The device provides a set of registers and commands that allow the user to configure and control the AES engine. The AES engine can be used to encrypt and decrypt data transmitted over the air.
  • The range of the CC2430F128RTCR depends on various factors such as the transmission power, antenna gain, and environment. However, in general, the device can achieve a range of up to 100 meters in indoor environments and up to 1 kilometer in outdoor environments.
