CC2430ZF128RTC - Texas Instruments

Description: TEXAS INSTRUMENTS - CC2430ZF128RTC - SOC, TRANCEIVER WITH MCU, ZIGBEE, 48QLP

Download CC2430ZF128RTC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

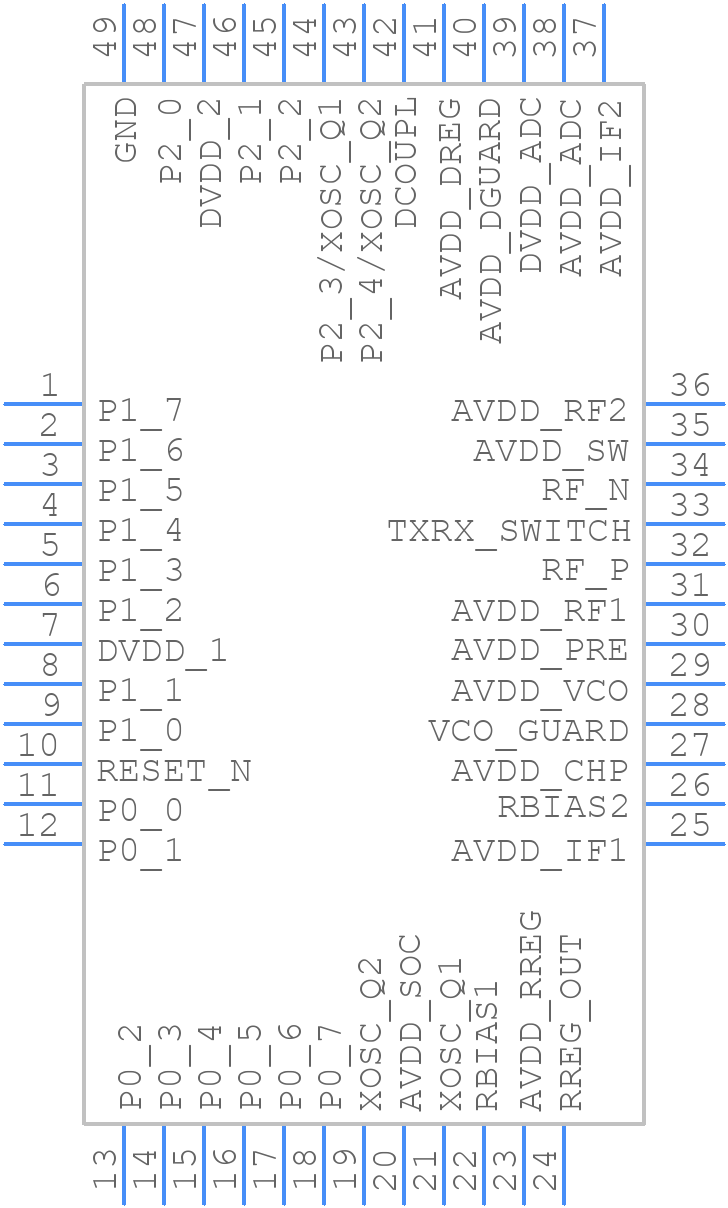

Symbol
CC2430ZF128RTC - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC2430ZF128RTC - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTC (S-PVQFN-N48
click to zoom
3D Models
CC2430ZF128RTC - Texas Instruments - 3D model - Quad Flat No-Lead - RTC (S-PVQFN-N48
click to zoom

CC2430ZF128RTC Details

  • Manufacturer Part Number:

    CC2430ZF128RTC

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

CC2430ZF128RTC Frequently Asked Questions (FAQs)

  • The maximum transmission power of the CC2430ZF128RTC is +4 dBm.
  • Frequency hopping can be implemented using the device's built-in frequency synthesizer and the IEEE 802.15.4 MAC layer. The CC2430ZF128RTC supports 16 channels in the 2.4 GHz band, and frequency hopping can be achieved by switching between these channels using the device's channel selection feature.
  • The current consumption of the CC2430ZF128RTC varies depending on the operating mode. In transmit mode, the current consumption is approximately 29 mA. In receive mode, it is approximately 23 mA. In idle mode, it is approximately 0.2 mA, and in sleep mode, it is approximately 0.02 mA.
  • The CC2430ZF128RTC has a built-in AES encryption engine that can be used to encrypt and decrypt data. The AES engine supports 128-bit keys and can be used in conjunction with the device's MAC layer to provide secure data transmission.
  • The range of the CC2430ZF128RTC depends on the environment and the antenna used. In general, the device can achieve a range of up to 100 meters in indoor environments and up to 1 kilometer in outdoor environments with a suitable antenna.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC2430ZF128RTC Overview

Use the download button to access the CC2430ZF128RTC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC243, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
