CC2500RGP - Texas Instruments

Description: Low Cost, Low-Power 2.4 GHz RF Transceiver Designed for Low-Power Wireless Apps in the 2.4 GHz ISM B

Download CC2500RGP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

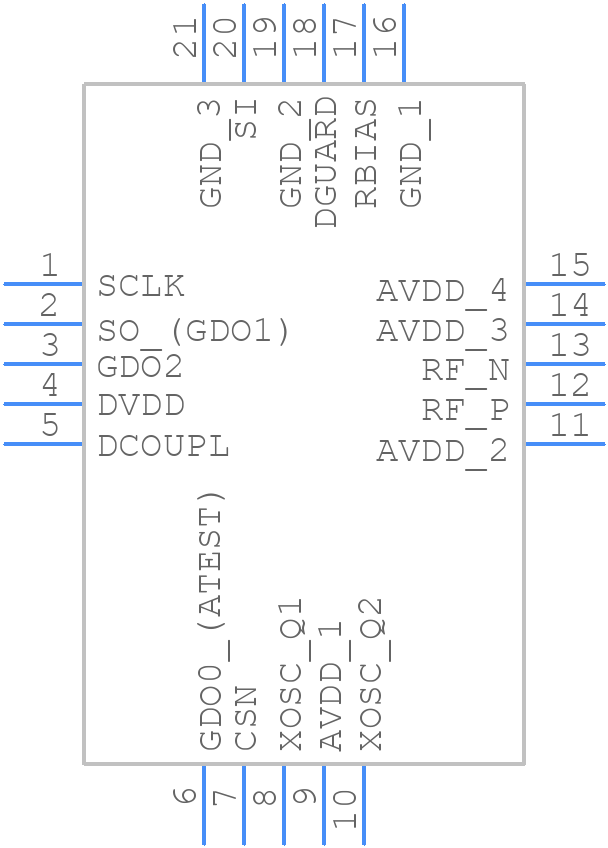

CC2500RGP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC2500RGP - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGP (S-PVQFN-N20)
click to zoom
3D Models
CC2500RGP - Texas Instruments - 3D model - Quad Flat No-Lead - RGP (S-PVQFN-N20)
click to zoom

CC2500RGP Details

  • Manufacturer Part Number:

    CC2500RGP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    20

  • Operating Frequency-Max:

    2483.5 MHz

  • Operating Frequency-Min:

    2400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    RF TRANSCEIVER

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

CC2500RGP Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CC2500RGP is 2.1V to 3.6V.
  • To configure the CC2500RGP for optimal performance, follow the recommended settings in the datasheet, including setting the frequency synthesizer, modulation format, and data rate. Additionally, ensure proper impedance matching and filtering to minimize signal loss and noise.
  • The maximum transmission power of the CC2500RGP is +1 dBm (1.26 mW). However, the actual transmission power can be adjusted using the PATABLE register.
  • To implement frequency hopping with the CC2500RGP, use the frequency synthesizer to switch between different channels. The CC2500RGP supports up to 256 channels, and the channel switching time is typically around 100 μs.
  • The maximum data rate supported by the CC2500RGP is 500 kbps. However, the actual data rate can be adjusted using the MDMCFG2 register.
