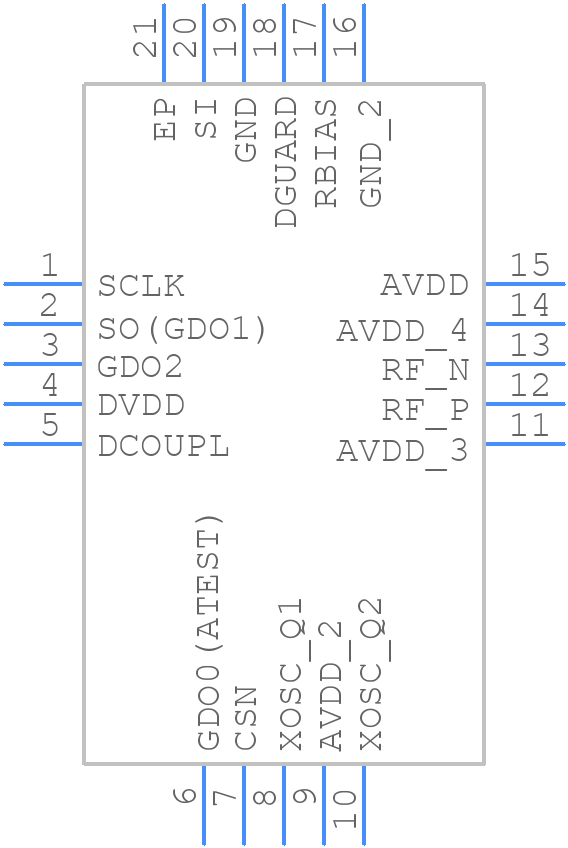

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CC2500RTK
- Part Number CC2500RTK
- Manufacturer Texas Instruments
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN50P400X400X90-21N
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
CC2500RTK Details
-
Manufacturer Part Number:
CC2500RTK
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFN
-
Package Description:
VQFN-20
-
Pin Count:
20
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Characteristic Impedance:
50 Ω
CC2500RTK Frequently Asked Questions (FAQs)
-
The maximum transmission power of the CC2500RTK is +10 dBm (10 mW). However, the actual transmission power can be adjusted through the PATABLE register.
-
To optimize the receiver sensitivity, ensure that the LNA (Low Noise Amplifier) is properly biased, and the receiver filter bandwidth is set correctly. Additionally, optimizing the AGC (Automatic Gain Control) settings and using a suitable antenna can also improve receiver sensitivity.
-
The recommended crystal oscillator frequency for the CC2500RTK is 26 MHz. This frequency provides the best trade-off between frequency accuracy and power consumption.
-
To implement frequency hopping with the CC2500RTK, use the device's built-in frequency synthesizer and configure the frequency hopping sequence using the FHSS (Frequency Hopping Spread Spectrum) registers. The CC2500RTK supports up to 80 frequency channels.
-
The maximum data rate supported by the CC2500RTK is 500 kbps. However, the actual data rate may be limited by the system's RF performance, antenna characteristics, and other factors.
Trust Checks
System Verified
CC2500RTK Overview
Use the download button to access the CC2500RTK schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CC250,
or try a keyword search, such as Other RF/Microwave Devices
