Texas Instruments provides a recommended PCB layout in the CC2520RHDRG4 datasheet, but it's also recommended to follow the guidelines in the 'CC2520RHDRG4 PCB Layout Guidelines' application note (SWRA349). This note provides detailed information on how to design a PCB that minimizes noise, ensures good signal integrity, and optimizes the performance of the device.
To configure the CC2520RHDRG4 for optimal power consumption, you should consider the specific requirements of your application. However, some general tips include: using the lowest possible frequency, disabling unnecessary peripherals, using the lowest possible transmission power, and using the device's built-in power management features such as the 'Sleep' and 'Hibernate' modes. You can also refer to the 'CC2520RHDRG4 Power Consumption' application note (SWRA350) for more information.
The maximum transmission distance of the CC2520RHDRG4 depends on various factors such as the transmission power, frequency, antenna design, and environment. However, according to the datasheet, the device can achieve a transmission distance of up to 1 km at 2.4 GHz with a transmission power of 0 dBm. You can also refer to the 'CC2520RHDRG4 Range Test Report' (SWRA351) for more information on the device's range performance.
The CC2520RHDRG4 supports frequency hopping, which can be implemented using the device's built-in frequency synthesizer and the 'Frequency Hopping' mode. You can configure the device to hop between different frequencies using the 'FHSS' (Frequency Hopping Spread Spectrum) mode. You can refer to the 'CC2520RHDRG4 Frequency Hopping' application note (SWRA352) for more information on how to implement frequency hopping with the device.
The CC2520RHDRG4 supports a maximum data rate of 2 Mbps, which is the maximum data rate supported by the IEEE 802.15.4 standard. However, the actual data rate achieved by the device depends on various factors such as the transmission power, frequency, and environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC2520RHDRG4 Overview

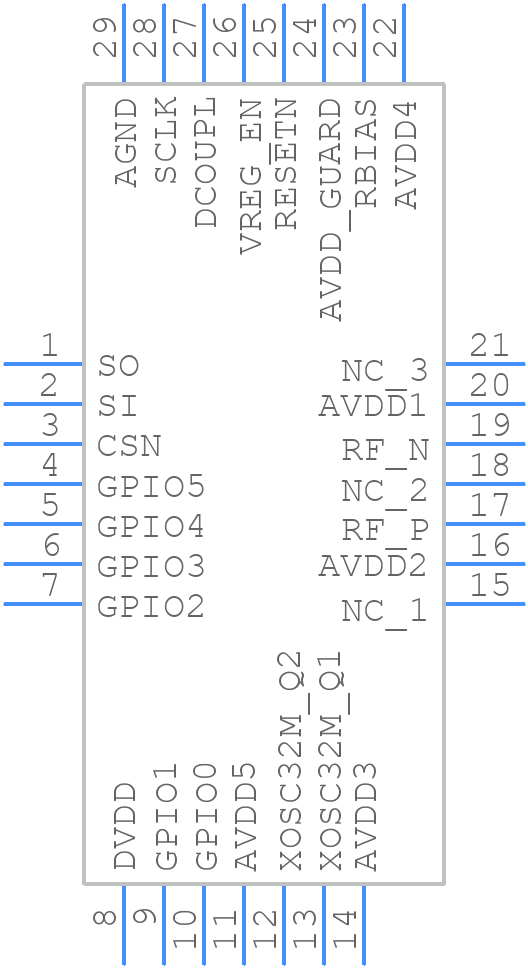

Use the download button to access the CC2520RHDRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC252,
or try a keyword search, such as Other Telecom ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
