CC2530F256RHAT - Texas Instruments

Description: CC2530F256RHAT, System-On-Chip Microcontroller CMOS for IEEE 802.15.4, ZigBee, 2 to 3.6V 40-Pin VQFN

Download CC2530F256RHAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

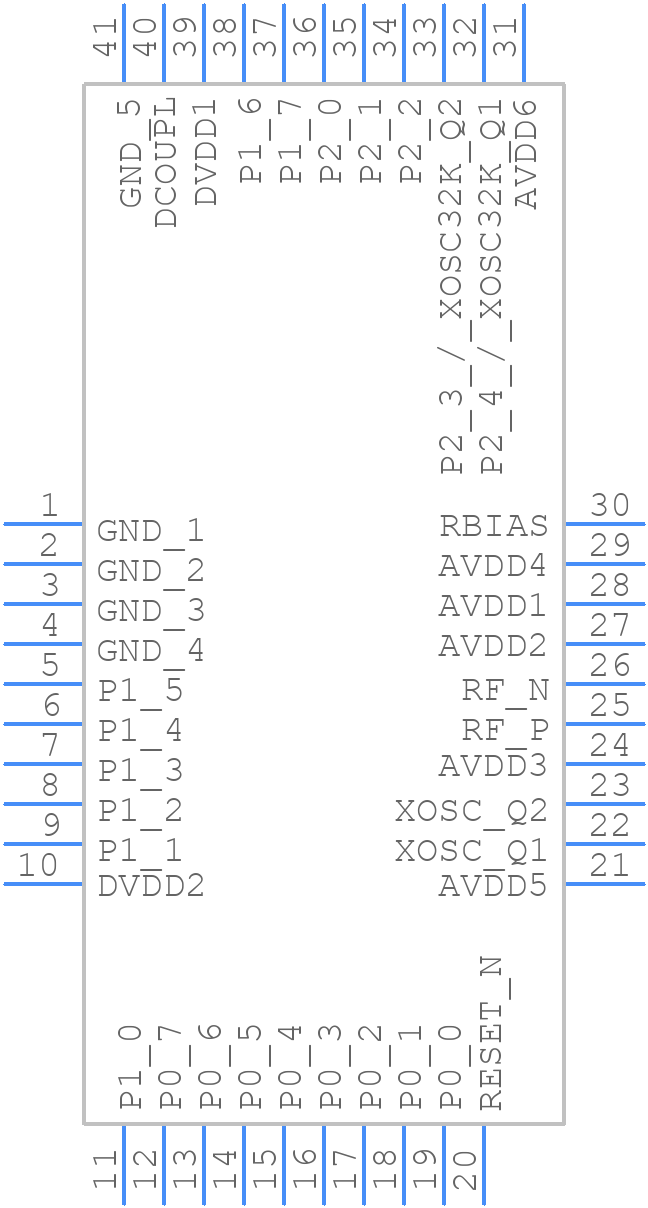

CC2530F256RHAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC2530F256RHAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA (S-PVQFN-N40)_1
click to zoom
3D Models
CC2530F256RHAT - Texas Instruments - 3D model - Quad Flat No-Lead - RHA (S-PVQFN-N40)_1
click to zoom

CC2530F256RHAT Details

  • Manufacturer Part Number:

    CC2530F256RHAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.75

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

CC2530F256RHAT Frequently Asked Questions (FAQs)

  • The maximum transmission power of the CC2530F256RHAT is +4.5 dBm.
  • To configure the CC2530F256RHAT for optimal performance, refer to the TI's recommended settings and calibration procedures in the datasheet and application notes. Additionally, consider factors such as antenna selection, PCB design, and firmware optimization.
  • Yes, the CC2530F256RHAT can be used with other microcontrollers, but it is optimized for use with TI's MSP430 microcontrollers. You may need to modify the firmware and hardware design to accommodate other microcontrollers.
  • The range of the CC2530F256RHAT depends on various factors such as transmission power, antenna selection, and environmental conditions. In ideal conditions, the range can be up to 1 km (0.62 miles) or more.
  • The CC2530F256RHAT supports AES-128 encryption and other security features. Implement security features by using TI's recommended security protocols and APIs, and consider using secure boot mechanisms and secure firmware updates.
