CC2545RGZR - Texas Instruments

Description: 2.4GHz RF Value Line SoC with 32kB flash, 31 GPIO, I2C, SPI and UART

Download CC2545RGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

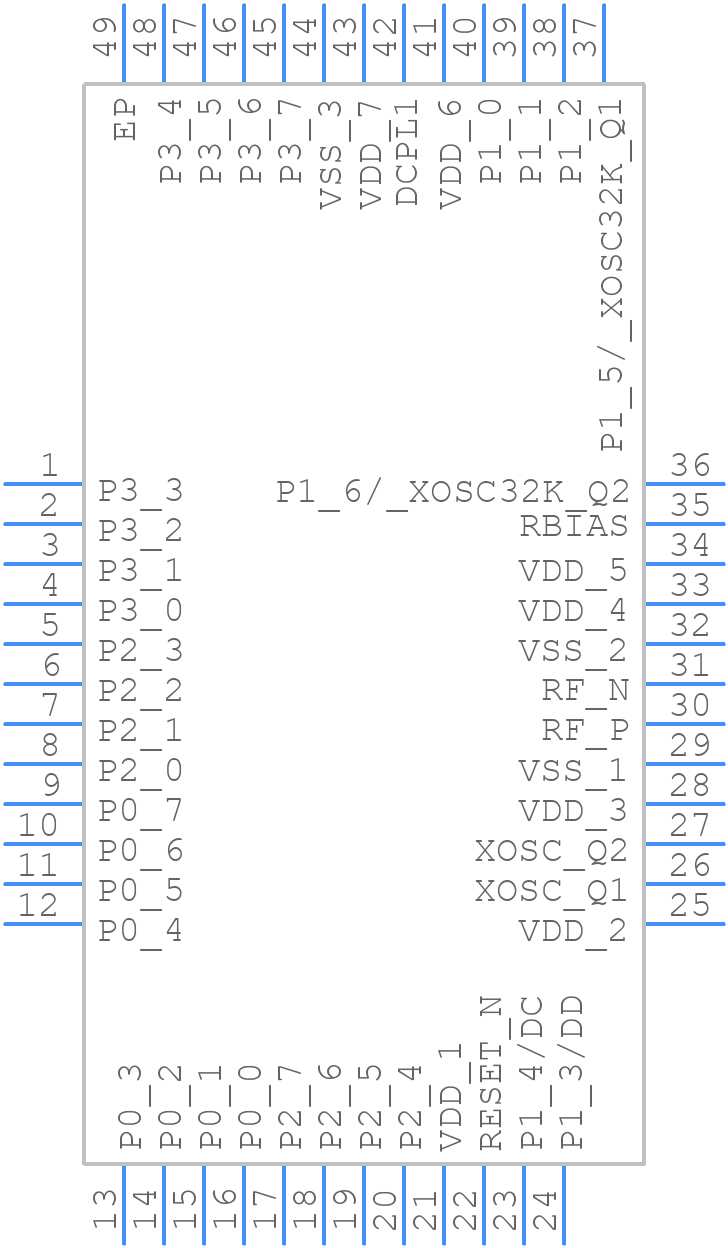

CC2545RGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC2545RGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048A 2021-1
click to zoom
3D Models
CC2545RGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048A 2021-1
click to zoom

CC2545RGZR Details

  • Manufacturer Part Number:

    CC2545RGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.75

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Frequency range : 2379-2496 MHz

  • Bus Compatibility:

    I2C; SPI; UART; USART

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

CC2545RGZR Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CC2545RGZR is 32.768 kHz. This frequency is used as the clock source for the microcontroller and is required for proper operation of the device.
  • To configure the CC2545RGZR for optimal power consumption, you can use the Power Manager (PM) module to control the power modes of the device. The PM module allows you to configure the device to enter low-power modes such as sleep or hibernate when not in use, and to wake up quickly when needed. Additionally, you can use the Dynamic Voltage and Frequency Scaling (DVFS) feature to adjust the voltage and frequency of the device based on the system requirements.
  • The maximum data transfer rate of the CC2545RGZR's UART is 3 Mbps. However, the actual data transfer rate may be limited by the baud rate and the communication protocol used.
  • Yes, the CC2545RGZR can be used in a master-slave configuration. The device has a built-in IEEE 802.15.4 compliant transceiver that can operate in both master and slave modes. In master mode, the device can initiate data transmission and control the communication with other devices. In slave mode, the device can receive data transmission from a master device and respond accordingly.
  • The CC2545RGZR has a built-in AES-128 encryption engine and a True Random Number Generator (TRNG) that can be used to implement security features such as encryption and authentication. You can use the AES engine to encrypt data transmitted over the air, and the TRNG to generate random numbers for cryptographic keys. Additionally, you can use the device's flash memory to store security keys and other sensitive data.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC2545RGZR Overview

Use the download button to access the CC2545RGZR schematic symbol, PCB footprint, and 3D model.
