CC2564MODACMOG - Texas Instruments

Description: Dual-mode Bluetooth® CC2564 module with integrated antenna

Download CC2564MODACMOG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

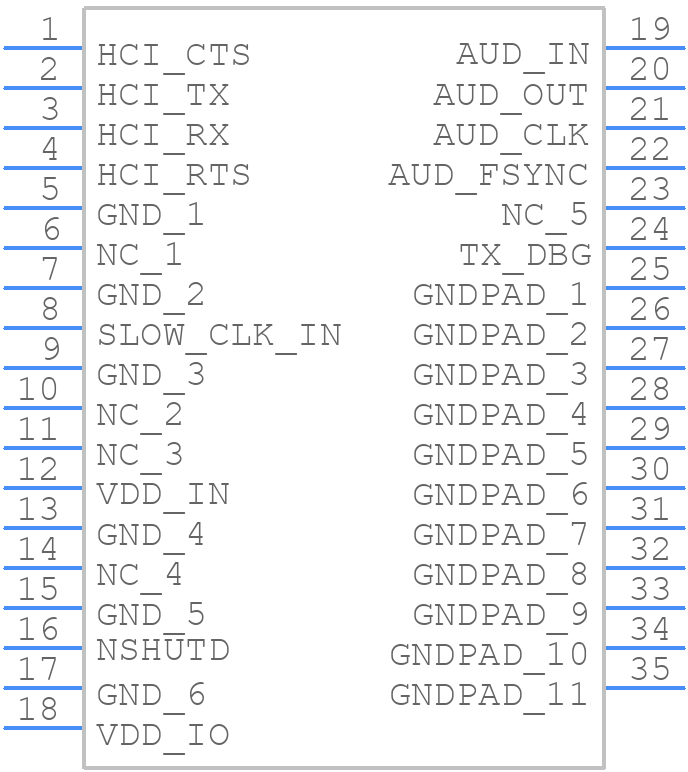

CC2564MODACMOG - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC2564MODACMOG - Texas Instruments PCB footprint - Other - Other - CC2564MODACMOG-2
click to zoom
3D Models
CC2564MODACMOG - Texas Instruments - 3D model - Other - CC2564MODACMOG-2
click to zoom

CC2564MODACMOG Details

  • Manufacturer Part Number:

    CC2564MODACMOG

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    4

  • JESD-30 Code:

    R-XXMA-N35

  • Length:

    14 mm

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    1.54 mm

  • Supply Voltage-Max:

    4.8 V

  • Supply Voltage-Min:

    2.2 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

CC2564MODACMOG Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the CC2564MODACMOG datasheet, but it's also recommended to follow the guidelines in the TI's 'Antenna and PCB Design Considerations for the CC256x' application note.
  • Optimizing the antenna design involves considering factors such as antenna type, size, and placement. TI provides antenna design guidelines in the 'Antenna and PCB Design Considerations for the CC256x' application note. Additionally, using TI's Antenna Tuning Tool can help optimize antenna performance.
  • The maximum transmit power of the CC2564MODACMOG is +20 dBm, but this can be adjusted using the device's power control features.
  • TI provides guidelines for coexistence in the 'Coexistence of CC256x with Other Wireless Technologies' application note. This includes using techniques such as adaptive frequency hopping and transmit power control.
  • The recommended crystal oscillator frequency for the CC2564MODACMOG is 26 MHz, but other frequencies can be used with proper configuration and calibration.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC2564MODACMOG Overview

Use the download button to access the CC2564MODACMOG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC256, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
