CC2571RHAT - Texas Instruments

Description: CC2571RHAT, RF Transceiver 2400 → 2495MHz, GFSK, 2 → 3.6 V 40-Pin VQFN

Download CC2571RHAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

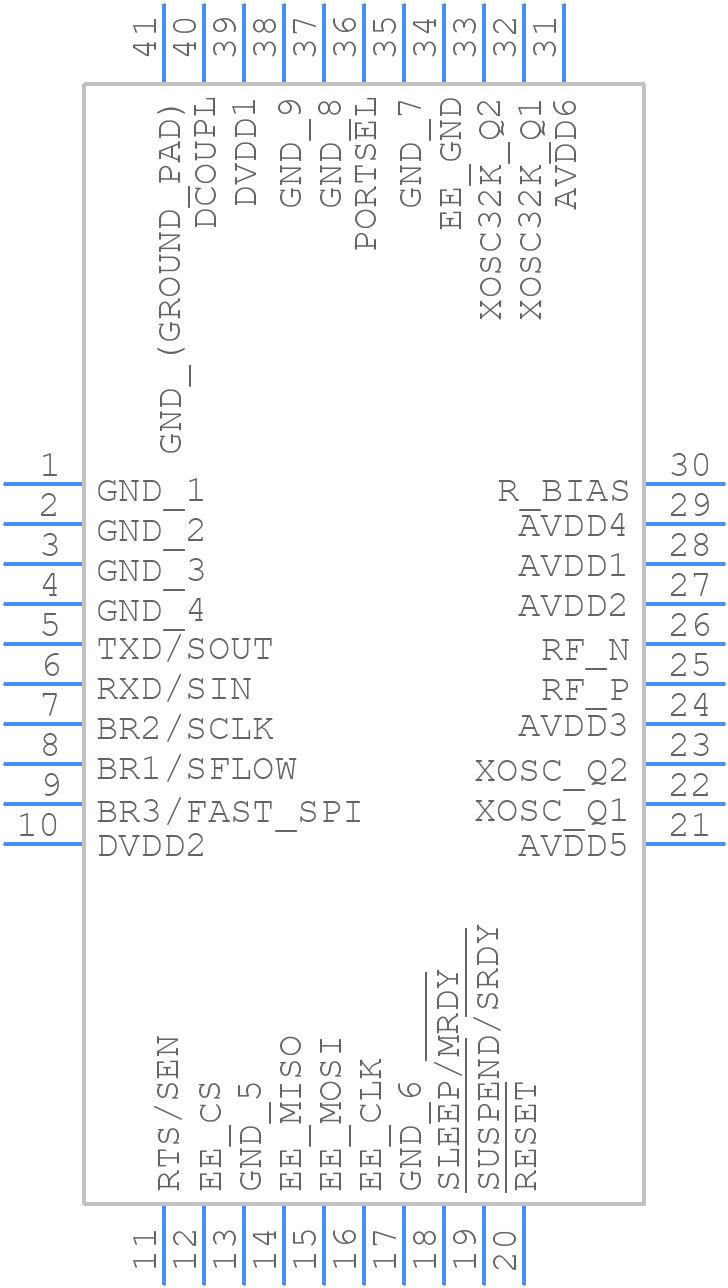

Symbol
CC2571RHAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC2571RHAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA (S-PVQFN-N40)_1
click to zoom
3D Models
CC2571RHAT - Texas Instruments - 3D model - Quad Flat No-Lead - RHA (S-PVQFN-N40)_1
click to zoom

CC2571RHAT Details

  • Manufacturer Part Number:

    CC2571RHAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    SPI; UART

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

CC2571RHAT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the CC2571RHAT Design and Operation Guide (SWRU323). It's essential to follow this layout to ensure optimal performance, especially for the antenna and RF traces.
  • The CC2571RHAT is a flexible wireless transceiver that can be configured for various protocols using the SmartRF Studio software. This software provides a graphical interface to configure the device for protocols like Bluetooth 5, Zigbee, and proprietary protocols.
  • The maximum transmit power of CC2571RHAT is +20 dBm. The transmit power can be adjusted using the SmartRF Studio software or by programming the device's registers. However, it's essential to ensure that the transmit power complies with regulatory requirements and does not exceed the maximum allowed power in your region.
  • The CC2571RHAT supports antenna diversity, which can improve the wireless link quality. To implement antenna diversity, you need to connect two antennas to the device and use the SmartRF Studio software to configure the antenna diversity settings. You may also need to add external switches and control logic to switch between the antennas.
  • The power consumption of CC2571RHAT varies depending on the mode of operation. In transmit mode, the current consumption is around 60 mA at +20 dBm output power. In receive mode, the current consumption is around 20 mA. In sleep mode, the current consumption is typically in the range of 1-10 μA. Refer to the datasheet for more detailed power consumption information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC2571RHAT Overview

Use the download button to access the CC2571RHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC257, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
