CC2590RGVRG4 - Texas Instruments

Description: RF Front End 2.4GHz RF range extender device

Download CC2590RGVRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

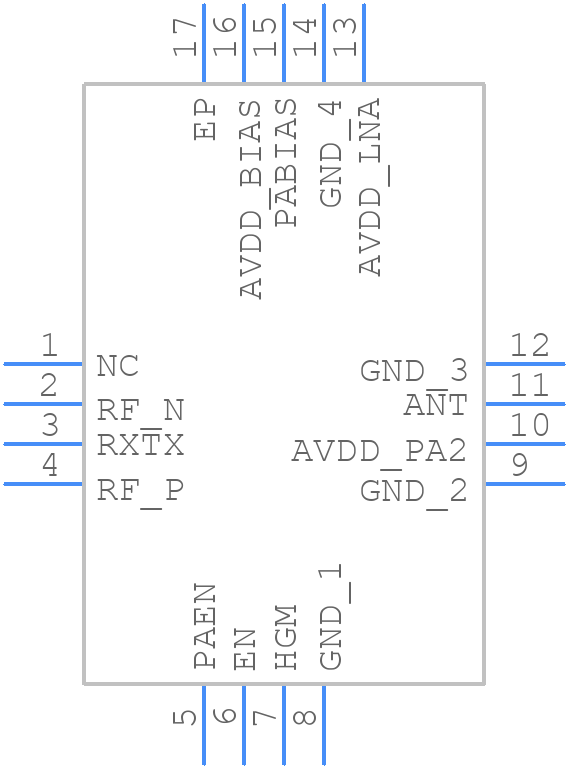

Symbol
CC2590RGVRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC2590RGVRG4 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGV (S-PVQFN-N16)
click to zoom
3D Models
CC2590RGVRG4 - Texas Instruments - 3D model - Quad Flat No-Lead - RGV (S-PVQFN-N16)
click to zoom

CC2590RGVRG4 Details

  • Manufacturer Part Number:

    CC2590RGVRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    LOW NOISE

  • Construction:

    COMPONENT

  • Gain:

    14.1 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    2483.5 MHz

  • Operating Frequency-Min:

    2400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    NARROW BAND LOW POWER

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

CC2590RGVRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide in their application note AN043, which includes guidelines for component placement, routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The CC2590RGVRG4 is a highly configurable device, and the frequency band can be selected using the SPI interface. The device has several registers that control the frequency synthesizer, and by writing to these registers, the device can be configured to operate in different frequency bands. The specific configuration depends on the target frequency band and the application requirements.
  • The maximum transmit power of the CC2590RGVRG4 is +20 dBm, but it can be adjusted using the PA_BOOST register. The device also has a built-in power amplifier (PA) that can be controlled to optimize the transmit power for specific applications.
  • Frequency hopping can be implemented using the CC2590RGVRG4's built-in frequency synthesizer and the SPI interface. The device has a frequency hopping mode that allows the frequency to be changed rapidly, and the specific implementation depends on the application requirements and the target frequency hopping scheme.
  • The latency of the CC2590RGVRG4 depends on the specific application and the operating mode. In general, the device has a latency of around 2-3 ms for transmitting and receiving data, but this can be optimized using the device's low-latency mode and by optimizing the firmware and software implementation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC2590RGVRG4 Overview

Use the download button to access the CC2590RGVRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC259, or try a keyword search, such as RF/Microwave Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
