The recommended layout and placement for the CC2590RGVT can be found in the CC2590RGVT Layout and Placement Application Note (SWRA419) from Texas Instruments. It provides guidelines for optimal PCB layout, component placement, and thermal management.
To optimize the CC2590RGVT for low power consumption, ensure that the device is operated in the correct mode (e.g., sleep mode) when not transmitting or receiving. Additionally, adjust the transmit power, data rate, and modulation scheme to minimize power consumption. Refer to the CC2590RGVT datasheet and application notes for more information.
When designing an antenna for the CC2590RGVT, consider the operating frequency, antenna size, and radiation pattern. Choose an antenna that provides a good impedance match to the CC2590RGVT's 50-ohm output. Texas Instruments provides antenna design guidelines and recommendations in the CC2590RGVT datasheet and application notes.
To troubleshoot issues with the CC2590RGVT, start by verifying the device configuration, transmission settings, and antenna performance. Use tools like packet sniffers, logic analyzers, or oscilloscopes to debug the issue. Consult the CC2590RGVT datasheet, application notes, and Texas Instruments' support resources for guidance.
The CC2590RGVT can generate heat during operation. Ensure proper thermal management by providing adequate heat dissipation through the PCB design, using thermal vias, and applying thermal interface materials. Refer to the CC2590RGVT datasheet and thermal management application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC2590RGVT Overview

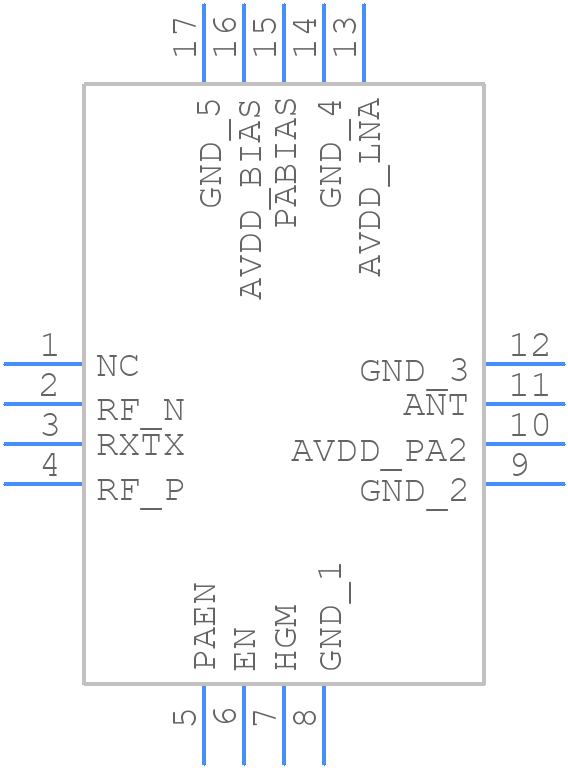

Use the download button to access the CC2590RGVT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC259,
or try a keyword search, such as RF/Microwave Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
