Part Image

CC2591RGVRG4 - Texas Instruments

Description: LNA/PA RF Front End 4.8dB 22dB 16-Pin VQFN EP T/R

Download CC2591RGVRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

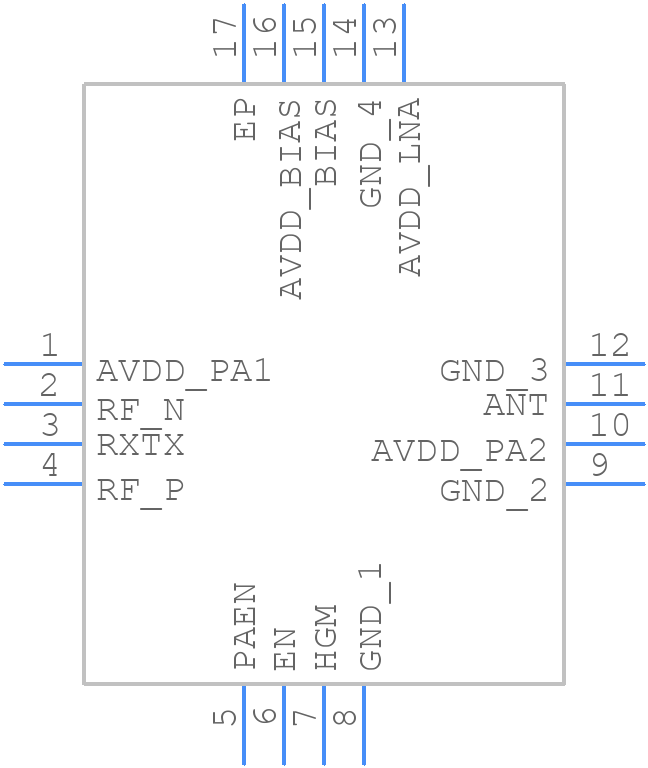

CC2591RGVRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC2591RGVRG4 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGV (S-PVQFN-N16)
click to zoom
3D Models
CC2591RGVRG4 - Texas Instruments - 3D model - Quad Flat No-Lead - RGV (S-PVQFN-N16)
click to zoom

CC2591RGVRG4 Details

  • Manufacturer Part Number:

    CC2591RGVRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF FRONT END CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

CC2591RGVRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the CC2591RGVRG4 datasheet and application notes. It's essential to follow these guidelines to ensure optimal performance, especially for impedance matching and noise reduction.
  • The CC2591RGVRG4 is a flexible transceiver that can operate in various frequency bands. To configure it for a specific band, you need to adjust the external components, such as the balun and matching network, and program the device's registers accordingly. Refer to the datasheet and application notes for specific guidance.
  • The maximum transmit power of CC2591RGVRG4 is +20 dBm, but it can be adjusted through the device's registers. However, it's essential to ensure that the transmit power complies with regulatory requirements and doesn't exceed the maximum rating of the device.
  • Frequency hopping can be implemented using the CC2591RGVRG4's built-in frequency synthesizer and the device's registers. You need to program the device to switch between different frequency channels at a specific rate, and ensure that the frequency hopping sequence complies with regulatory requirements.
  • The balun is a critical component in the CC2591RGVRG4's RF front-end, as it converts the single-ended signal from the device to a differential signal required by the antenna. A properly designed balun ensures optimal impedance matching and minimizes signal loss.
