CC2630F128RSMR - Texas Instruments

Description: SimpleLink ultra-low power wireless MCU targeting Zigbee® and 6LoWPAN applications

Download CC2630F128RSMR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

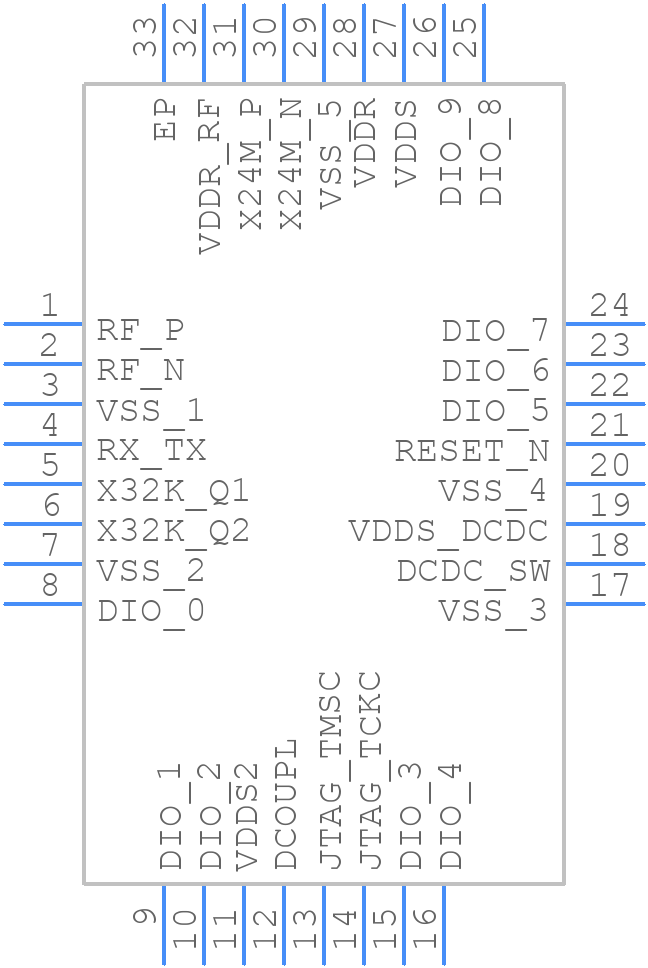

CC2630F128RSMR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC2630F128RSMR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSM0032B
click to zoom
3D Models
CC2630F128RSMR - Texas Instruments - 3D model - Quad Flat No-Lead - RSM0032B
click to zoom

CC2630F128RSMR Details

  • Manufacturer Part Number:

    CC2630F128RSMR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    48 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    10

  • Number of Terminals:

    32

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    20480

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1 mm

  • Speed:

    48 MHz

  • Supply Voltage-Max:

    3.8 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

CC2630F128RSMR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for CC2630F128RSMR is 1.8V to 3.8V. However, it can operate from 1.7V to 3.9V, but with reduced performance and reliability.
  • To configure the CC2630F128RSMR for optimal power consumption, use the Power Mode Controller (PMC) to select the lowest power mode suitable for your application. Disable unnecessary peripherals, use the Low Power Mode (LPM) and adjust the clock frequency to minimize power consumption.
  • The maximum data transfer rate of the CC2630F128RSMR's UART is 4 Mbps. However, the actual data transfer rate may be limited by the baud rate generator and the system clock frequency.
  • Yes, the CC2630F128RSMR can operate as both a BLE peripheral and central device simultaneously, but it requires careful configuration and management of the device's roles and connections to avoid conflicts and ensure reliable operation.
  • To implement secure boot and secure firmware updates on the CC2630F128RSMR, use the device's built-in security features such as the Secure Boot Loader (SBL) and the Firmware Update and Configuration (FUC) module. Additionally, use cryptographic algorithms and secure communication protocols to protect the firmware and data.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC2630F128RSMR Overview

Use the download button to access the CC2630F128RSMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC263, or try a keyword search, such as Microcontrollers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
