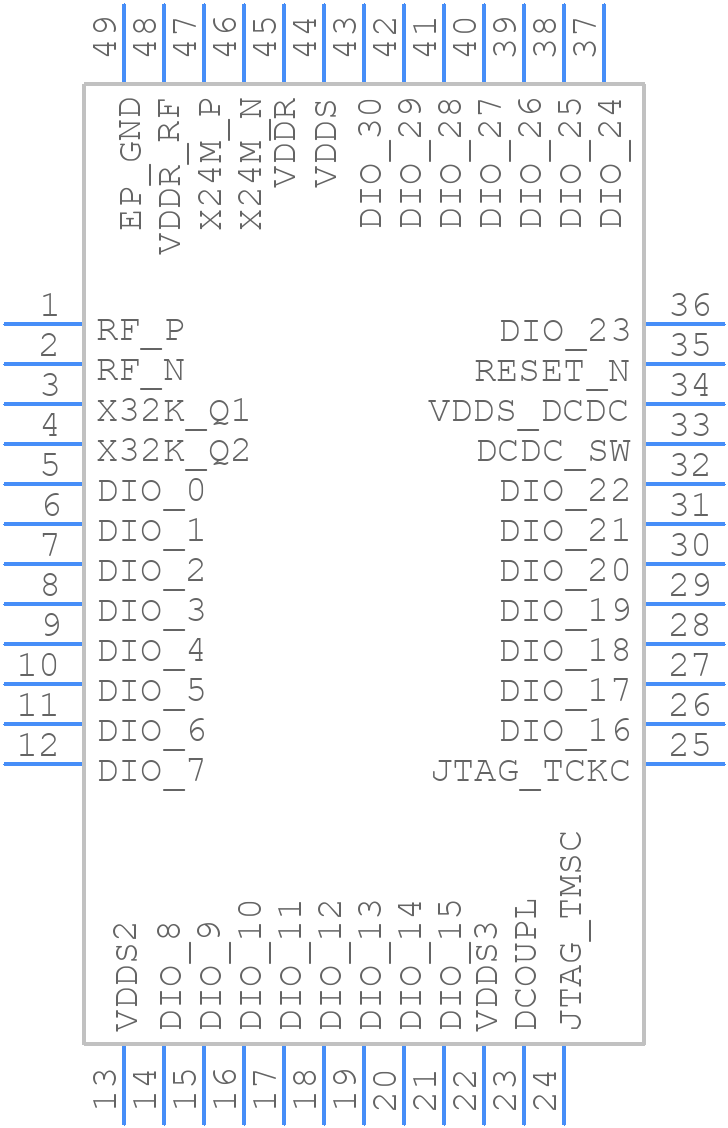

CC2650F128RGZT - Texas Instruments

CC2650F128RGZT Details

• Manufacturer Part Number:

  CC2650F128RGZT

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Philippines

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.50

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  CORTEX-M3

• Clock Frequency-Max:

  48 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PQCC-N48

• JESD-609 Code:

  e4

• Length:

  7 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  31

• Number of Serial I/Os:

  1

• Number of Terminals:

  48

• Number of Timers:

  4

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC48,.27SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• RAM (bytes):

  20480

• RAM (words):

  28

• ROM (words):

  131072

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1 mm

• Speed:

  48 MHz

• Supply Voltage-Max:

  3.8 V

• Supply Voltage-Min:

  1.8 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  RFSoC
