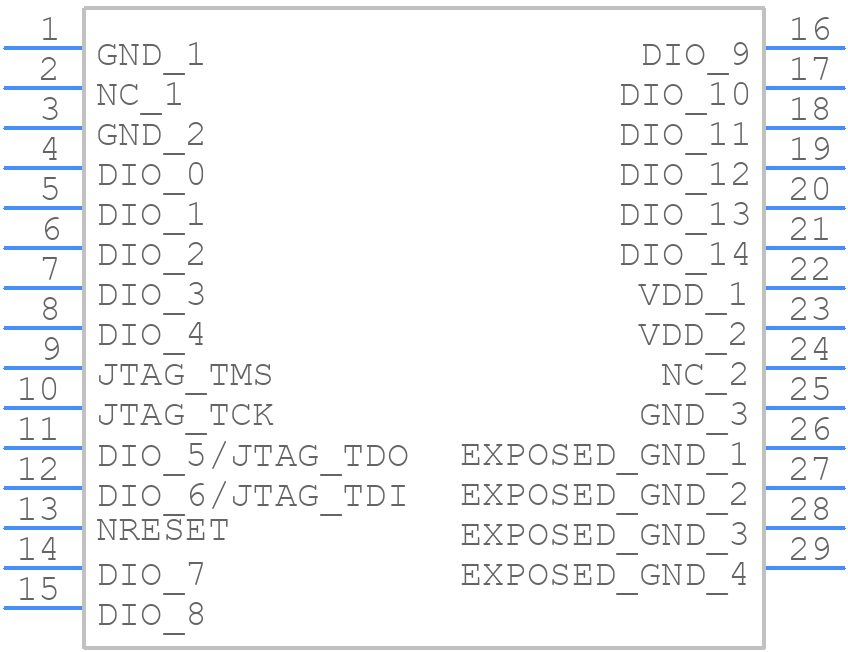

CC2650MODAMOHR - Texas Instruments

CC2650MODAMOHR Details

• Manufacturer Part Number:

  CC2650MODAMOHR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.75

• Date Of Intro:

  2016-08-26

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  CORTEX-M3

• Clock Frequency-Max:

  48 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  R-XXMA-N29

• JESD-609 Code:

  e4

• Length:

  16.9 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  32

• Number of I/O Lines:

  15

• Number of Serial I/Os:

  1

• Number of Terminals:

  29

• Number of Timers:

  4

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  UNSPECIFIED

• Package Code:

  XMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  240

• RAM (bytes):

  20480

• ROM (words):

  131072

• ROM Programmability:

  FLASH

• Seated Height-Max:

  2.69 mm

• Speed:

  48 MHz

• Supply Voltage-Max:

  3.8 V

• Supply Voltage-Min:

  1.8 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Gold (Ni/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  1.15 mm

• Terminal Position:

  UNSPECIFIED

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  11 mm

• uPs/uCs/Peripheral ICs Type:

  RFSOC
