Part Image

CC2A35 - Amphenol

Description: Humidity, Temperature 0 ~ 100% RH PDM ±3% RH 7 s Surface Mount

Download CC2A35 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

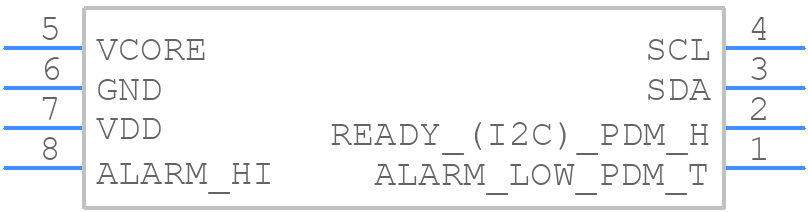

Symbol
CC2A35 - Amphenol - PCB symbol
click to zoom
PCB Footprints
CC2A35 - Amphenol PCB footprint - Other - Other - CC2A35-2
click to zoom
3D Models
CC2A35 - Amphenol - 3D model - Other - CC2A35-2
click to zoom

CC2A35 Details

  • Manufacturer Part Number:

    CC2A35

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Amphenol Corporation

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    240

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4 mm

CC2A35 Frequently Asked Questions (FAQs)

  • The recommended torque for the CC2A35 connector is 10-15 in-lbs (1.1-1.7 Nm) for the screw locks and 5-10 in-lbs (0.6-1.1 Nm) for the nut plates.
  • Yes, the CC2A35 is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-38999, which includes sinusoidal vibration testing at 20 Gs peak acceleration.
  • Yes, the CC2A35 is designed to be compatible with other MIL-DTL-38999 connectors from various manufacturers. However, it's recommended to verify compatibility with the specific connector model and manufacturer before use.
  • The operating temperature range of the CC2A35 is -65°C to 200°C (-85°F to 392°F), which is in accordance with the MIL-DTL-38999 specification.
  • Yes, the CC2A35 is designed to withstand harsh environments, including exposure to salt spray and humidity. It meets the environmental requirements of MIL-DTL-38999, which includes salt spray testing and humidity testing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC2A35 Overview

Use the download button to access the CC2A35 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC2A3, or try a keyword search, such as Other Signal Circuits

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
