The CC3100MODR11MAMOBR module requires a well-designed antenna to achieve optimal Wi-Fi performance. TI recommends using a monopole or dipole antenna with a minimum gain of 2 dBi. The antenna should be placed at least 10 mm away from the module's edges to minimize interference.
To optimize power consumption, use the CC3100MODR11MAMOBR module's low-power modes, such as the 'sleep' mode, which reduces power consumption to around 10 μA. Additionally, use the module's built-in power management features, such as dynamic voltage and frequency scaling, to minimize power consumption.
To ensure optimal performance and minimize electromagnetic interference (EMI), TI recommends following a 4-layer PCB layout with a dedicated ground plane, and keeping the module's RF traces as short as possible. Additionally, use a common mode filter and a 10 nF capacitor to filter the power supply.
To implement secure Wi-Fi connectivity, use the module's built-in WPA2 encryption and implement a secure boot mechanism to prevent unauthorized access. Additionally, use secure protocols such as HTTPS and SSH to encrypt data transmission.
The CC3100MODR11MAMOBR module is rated for operation in the -40°C to +85°C temperature range. However, it's recommended to operate the module within the -20°C to +70°C range for optimal performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC3100MODR11MAMOBR Overview

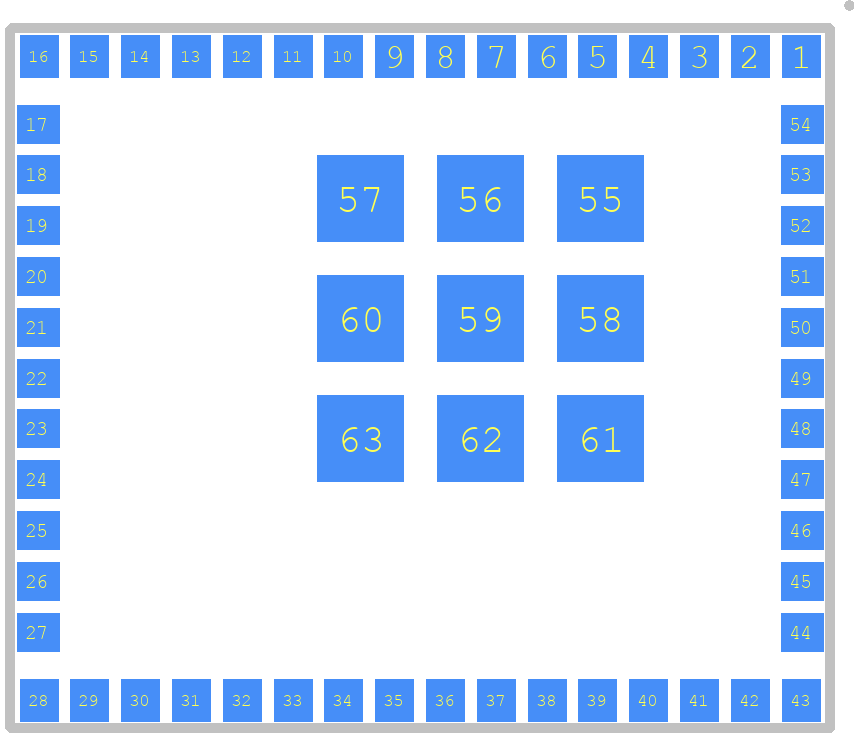

Use the download button to access the CC3100MODR11MAMOBR schematic symbol and PCB footprint.
