CC3100R11MRGCR - Texas Instruments

Description: SimpleLink™ Wi-Fi® Network Processor, Internet-of-Things Solution for MCU Applications

Download CC3100R11MRGCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CC3100R11MRGCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

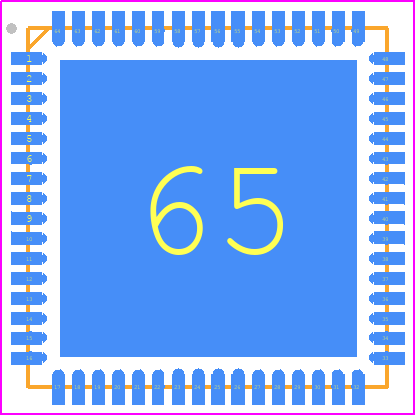

CC3100R11MRGCR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - rgc-64
click to zoom
3D Models
CC3100R11MRGCR - Texas Instruments - 3D model - Quad Flat No-Lead - rgc-64
click to zoom

CC3100R11MRGCR Details

  • Manufacturer Part Number:

    CC3100R11MRGCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    16000 Mbps

  • JESD-30 Code:

    S-PQCC-N64

  • JESD-609 Code:

    e4

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    WIRELESS LAN CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

CC3100R11MRGCR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide for the CC3100R11MRGCR in the CC3100 SimpleLink Wi-Fi and IoT Solution Guide (SWRU455). It's essential to follow this guide to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The CC3100R11MRGCR has a built-in antenna, but the antenna design can be optimized for specific applications. Texas Instruments provides antenna design guidelines in the CC3100 Antenna Design Guide (SWRU456). It's crucial to follow these guidelines to ensure optimal Wi-Fi performance.
  • The power consumption of the CC3100R11MRGCR varies depending on the mode. In active mode, the current consumption is around 240 mA. In standby mode, it's around 10 mA, and in sleep mode, it's around 1 mA. Refer to the CC3100 datasheet for more detailed power consumption information.
  • The CC3100R11MRGCR supports WPA2-PSK and WPA2-Enterprise security protocols. To implement secure Wi-Fi connectivity, follow the security guidelines in the CC3100 SimpleLink Wi-Fi and IoT Solution Guide (SWRU455) and use the provided APIs for secure Wi-Fi connections.
  • The CC3100R11MRGCR has an operating temperature range of -40°C to 85°C. However, the device can be operated at temperatures up to 105°C for short periods during power-up and power-down sequences.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC3100R11MRGCR Overview

Use the download button to access the CC3100R11MRGCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC310, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
