CC3235MODSF12MOBR - Texas Instruments

Description: RF Microcontrollers - MCU

Download CC3235MODSF12MOBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CC3235MODSF12MOBR - Texas Instruments - PCB symbol
click to zoom

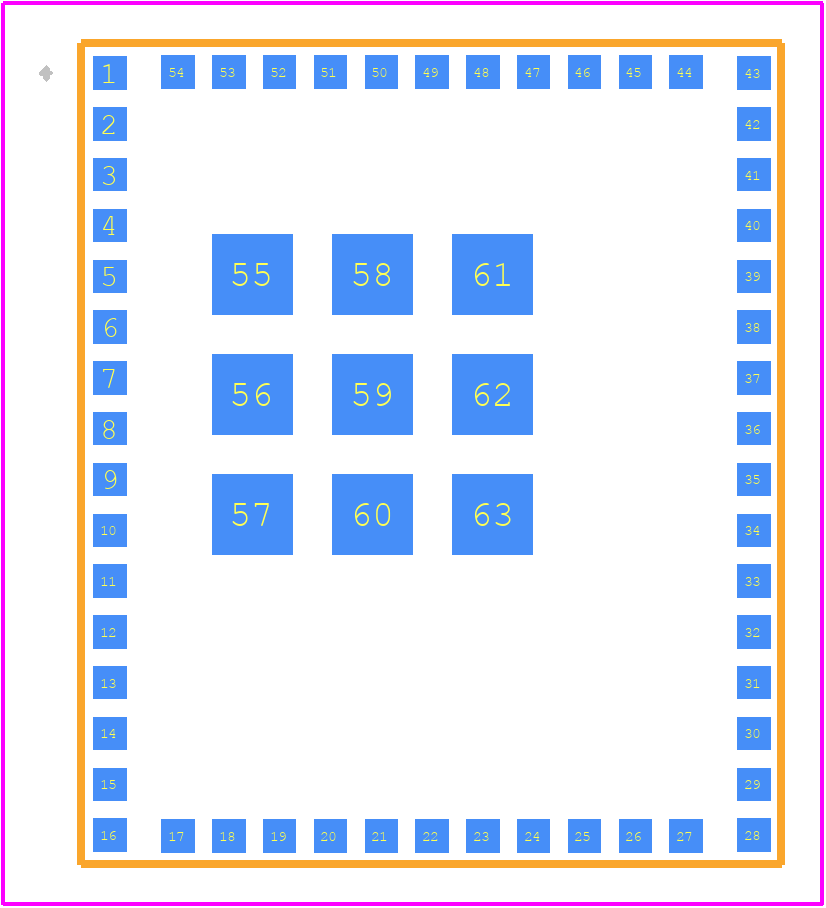

PCB Footprints
CC3235MODSF12MOBR - Texas Instruments PCB footprint - Other - Other - CC3235MODSF12MOBR-2
click to zoom
3D Models
CC3235MODSF12MOBR - Texas Instruments - 3D model - Other - CC3235MODSF12MOBR-2
click to zoom

CC3235MODSF12MOBR Details

  • Manufacturer Part Number:

    CC3235MODSF12MOBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.75

  • Date Of Intro:

    2019-08-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-XXMA-N63

  • JESD-609 Code:

    e4

  • Length:

    20.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    63

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.4 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17.5 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

CC3235MODSF12MOBR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply power to the module in the following order: 1) VDDS (1.8V), 2) VDDA (1.8V), and 3) VBAT (3.3V). This sequence ensures proper power-up of the module.
  • To optimize Wi-Fi performance, ensure that the module is placed in a location with minimal interference, use a good quality antenna, and configure the Wi-Fi settings using the SimpleLink Wi-Fi API. Additionally, optimize the transmission power and data rate according to your application's requirements.
  • The CC3235MODSF12MOBR can operate in a temperature range of -40°C to 85°C. However, it's recommended to operate the module within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • To implement secure Wi-Fi connectivity, use the SimpleLink Wi-Fi API to configure the module for WPA2-PSK encryption. Additionally, use a secure password and ensure that the Wi-Fi network is configured to use WPA2 encryption.
  • The maximum current consumption of the CC3235MODSF12MOBR is approximately 350mA during Wi-Fi transmission and 150mA during Wi-Fi reception. However, the actual current consumption may vary depending on the application and usage scenario.
