CC430F5137IRGZR - Texas Instruments

Description: 16-Bit Ultra-Low-Power MCU, 32KB Flash, 4KB RAM, CC1101 Radio, AES-128, 12Bit ADC, USCI

Download CC430F5137IRGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

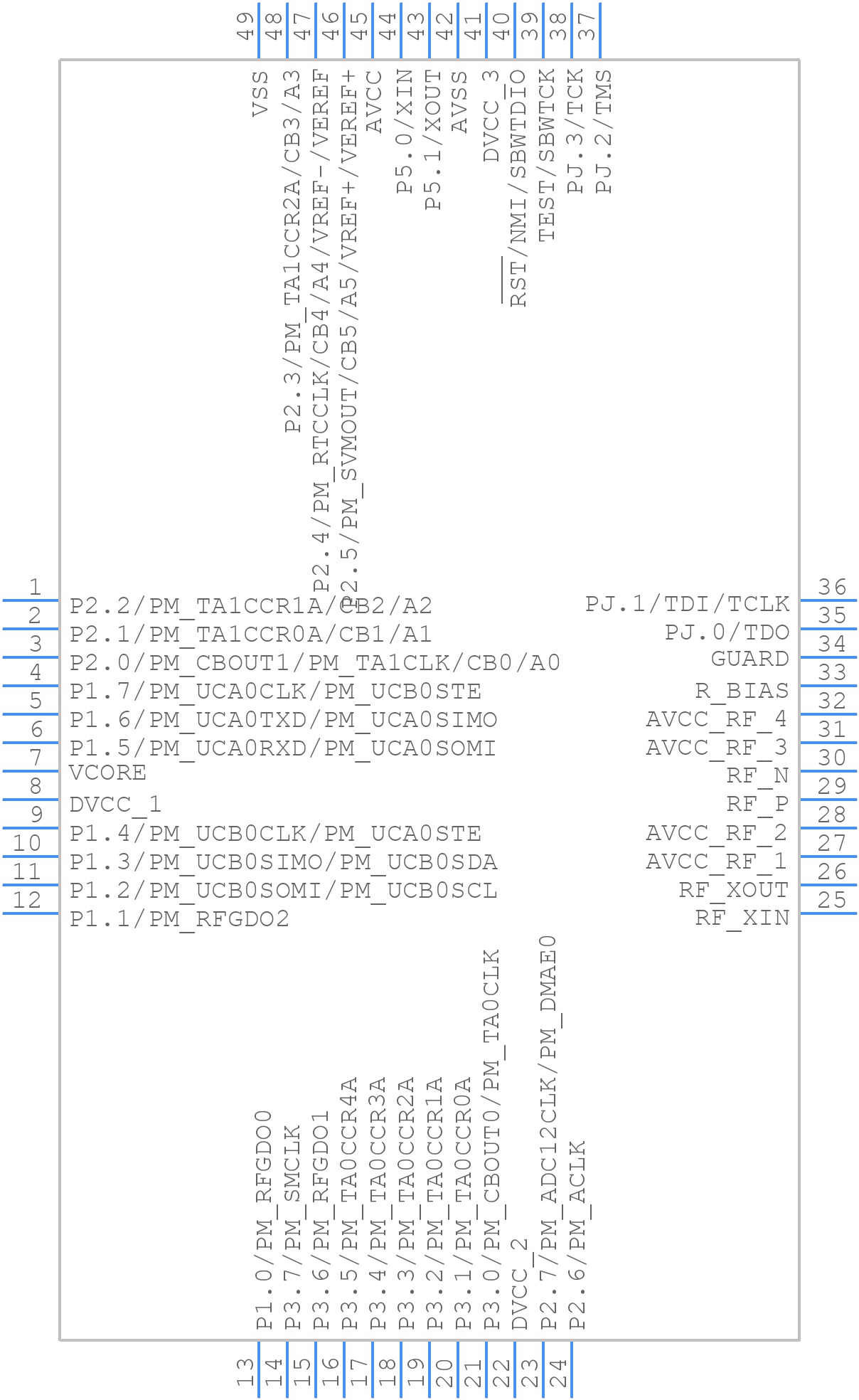

Symbol
CC430F5137IRGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC430F5137IRGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ-ren1
click to zoom
3D Models
CC430F5137IRGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ-ren1
click to zoom

CC430F5137IRGZR Details

  • Manufacturer Part Number:

    CC430F5137IRGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    500 Mbps

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    2.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

CC430F5137IRGZR Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CC430F5137 is 26 MHz or 32.768 kHz. However, the device can operate with a crystal frequency between 20 MHz and 40 MHz.
  • To configure the CC430F5137 for low power consumption, use the Low Power Mode (LPM) feature, which can reduce power consumption to as low as 1.5 μA. This can be achieved by setting the LPM bits in the SYSCTL register and configuring the clock system to use a low-frequency clock source.
  • The maximum transmission power of the CC430F5137's radio is +14 dBm. However, the transmission power can be adjusted using the PATABLE register to optimize power consumption and range.
  • To implement a reliable wireless communication protocol using the CC430F5137, use a protocol such as IEEE 802.15.4 or Zigbee, which provides error detection and correction mechanisms. Additionally, implement retries and acknowledgments to ensure reliable data transfer.
  • The maximum data rate of the CC430F5137's UART is 3.125 Mbps. However, the data rate can be adjusted using the UART baud rate generator to optimize communication speed and power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC430F5137IRGZR Overview

Use the download button to access the CC430F5137IRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC430, or try a keyword search, such as Other Telecom ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
