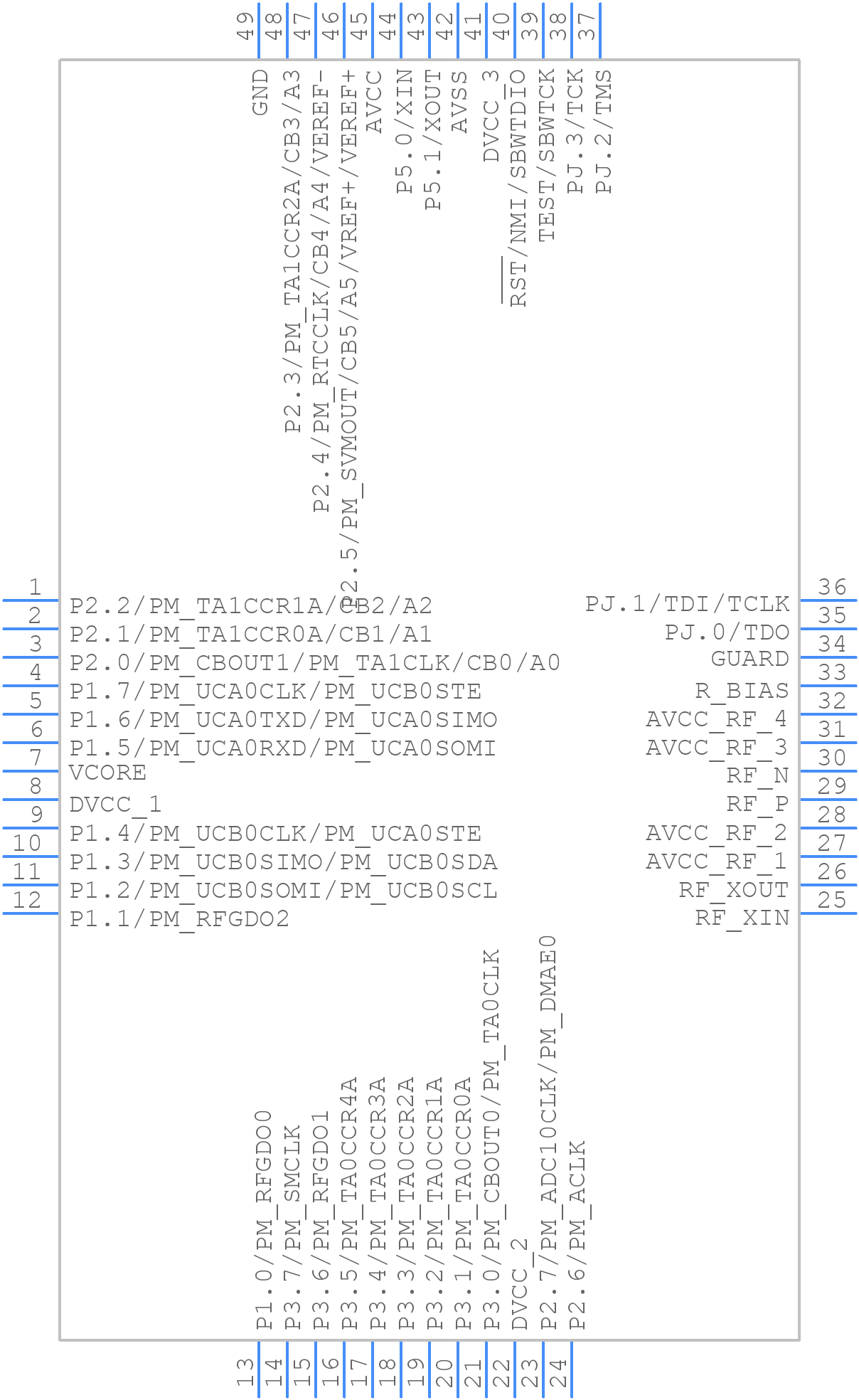

CC430F5143IRGZT - Texas Instruments

CC430F5143IRGZT Details

• Manufacturer Part Number:

  CC430F5143IRGZT

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Pin Count:

  48

• Country Of Origin:

  Malaysia

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.50

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  IT ALSO OPERATES IN 1.8V MINIMUM SUPPLY

• Bit Size:

  16

• Bus Compatibility:

  I2C; SPI; UART

• CPU Family:

  MSP430

• Clock Frequency-Max:

  20 MHz

• JESD-30 Code:

  S-PQCC-N48

• JESD-609 Code:

  e4

• Length:

  7 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  30

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC48,.27SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  2048

• RAM (words):

  2

• ROM (words):

  8192

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1 mm

• Speed:

  20 MHz

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  2.4 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  RFSOC
