CC8520RHAT - Texas Instruments

Description: PurePath™ Wireless 2.4 GHz RF SoC for wireless digital audio streaming

Download CC8520RHAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

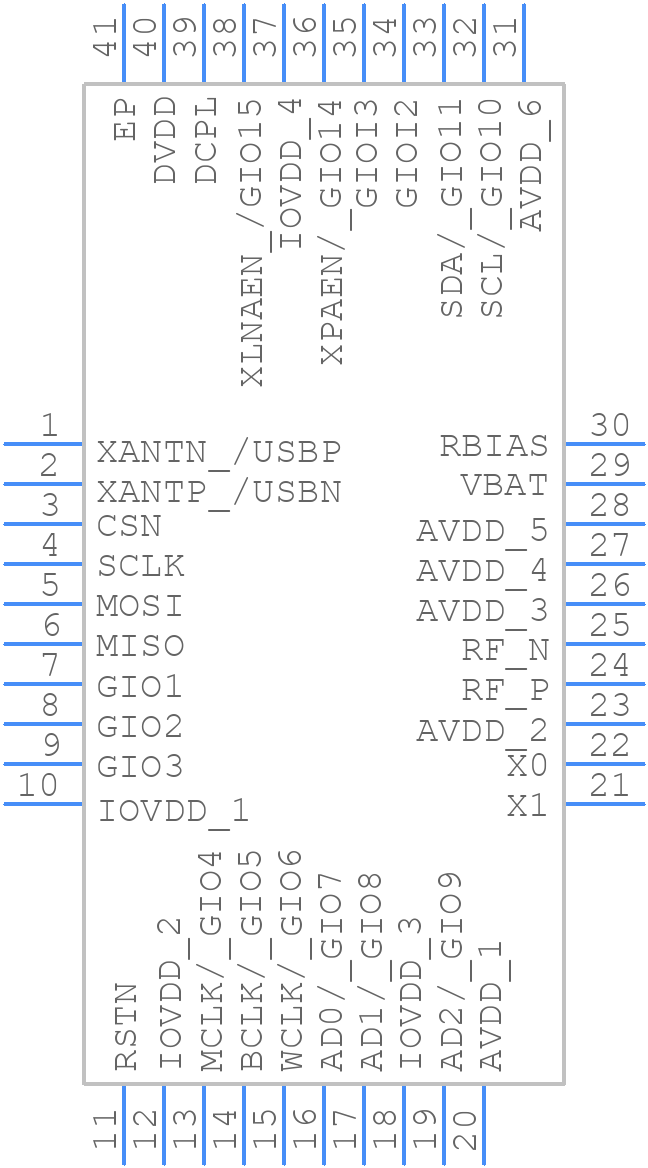

Symbol
CC8520RHAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC8520RHAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CC8520RHAT
click to zoom
3D Models
CC8520RHAT - Texas Instruments - 3D model - Quad Flat No-Lead - CC8520RHAT
click to zoom

CC8520RHAT Details

  • Manufacturer Part Number:

    CC8520RHAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Frequency range : 2400 MHz

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

CC8520RHAT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and away from digital signals. Use a common mode filter on the USB lines to reduce EMI.
  • Use a good quality antenna with a gain of 2-3 dBi, and ensure it is properly matched to the CC8520RHAT's RF output. Also, implement a robust Wi-Fi connection retry mechanism in your firmware to handle temporary disconnections.
  • The maximum current consumption of the CC8520RHAT is around 350mA during Wi-Fi transmission, and around 50mA during standby mode. However, this can vary depending on the specific application and usage scenario.
  • Use WPA2-PSK (AES) encryption with a secure password, and implement a secure boot mechanism to prevent firmware tampering. Also, use HTTPS for secure data transfer over the internet.
  • The CC8520RHAT operates over a temperature range of -40°C to 85°C. However, the device's performance and reliability may degrade at extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC8520RHAT Overview

Use the download button to access the CC8520RHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC852, or try a keyword search, such as Other Telecom ICs
