CC8531RHAR - Texas Instruments

Description: Module 802.11 2.4835GHz 5000Kbps 40-Pin VQFN EP T/R

Download CC8531RHAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

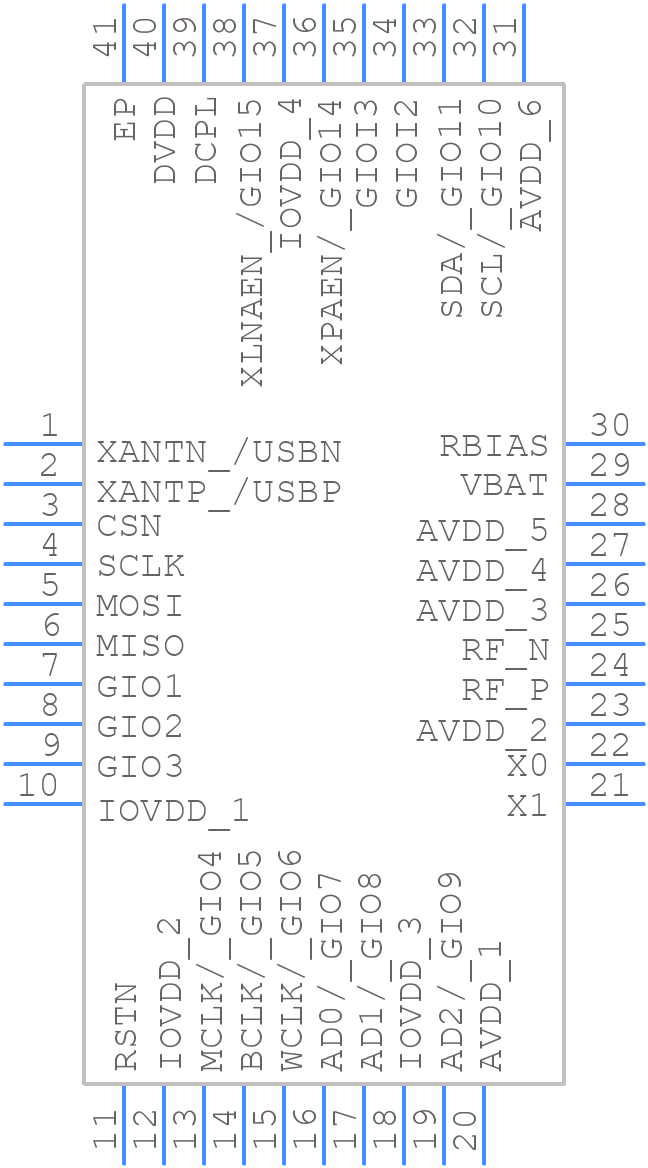

CC8531RHAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC8531RHAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0040H
click to zoom
3D Models
CC8531RHAR - Texas Instruments - 3D model - Quad Flat No-Lead - RHA0040H
click to zoom

CC8531RHAR Details

  • Manufacturer Part Number:

    CC8531RHAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Frequency range : 2400 MHz

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

CC8531RHAR Frequently Asked Questions (FAQs)

  • TI recommends a 4-layer PCB with a solid ground plane, and placing the CC8531RHAR near the antenna to minimize noise and ensure optimal performance.
  • Use a 50-ohm antenna with a quarter-wavelength monopole or a dipole antenna, and ensure the antenna is matched to the CC8531RHAR's output impedance. TI provides antenna design guidelines in their application notes.
  • The CC8531RHAR has a maximum transmit power of +20 dBm (100 mW) for the 2.4 GHz band and +15 dBm (32 mW) for the 5 GHz band.
  • Use the CC8531RHAR's built-in frequency synthesizer and configure the device to hop between frequencies using the SPI interface. TI provides example code and application notes for frequency hopping implementation.
  • The CC8531RHAR is specified to operate from -40°C to 85°C and is relatively insensitive to voltage variations within the recommended operating range of 1.8V to 3.6V. However, it's essential to follow TI's recommended operating conditions and layout guidelines to ensure optimal performance.
