CC8531RHAT - Texas Instruments

Description: PurePath™ Wireless 2.4 GHz RF SoC for wireless digital audio streaming

Download CC8531RHAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

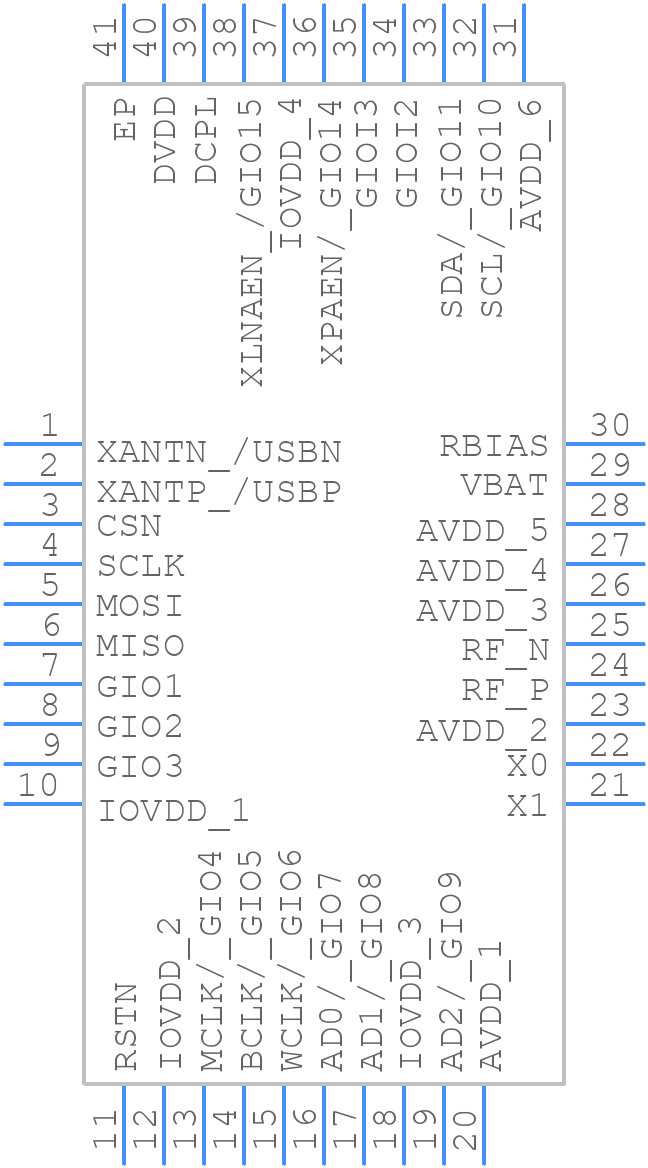

CC8531RHAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC8531RHAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VQFN - 1 mm
click to zoom
3D Models
CC8531RHAT - Texas Instruments - 3D model - Quad Flat No-Lead - VQFN - 1 mm
click to zoom

CC8531RHAT Details

  • Manufacturer Part Number:

    CC8531RHAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Frequency range : 2400 MHz

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

CC8531RHAT Frequently Asked Questions (FAQs)

  • TI recommends a 4-layer PCB with a solid ground plane, and placing the CC8531RHAT near the antenna to minimize noise and ensure optimal performance.
  • Use a 50-ohm antenna with a quarter-wavelength monopole or a dipole antenna, and ensure the antenna is matched to the CC8531RHAT's output impedance. TI provides antenna design guidelines in the application notes.
  • The maximum transmit power of the CC8531RHAT is +20 dBm (100 mW), but this can be limited by regulatory requirements and the specific application.
  • Use the CC8531RHAT's built-in frequency synthesizer and the SPI interface to control the frequency hopping sequence. TI provides example code and application notes for frequency hopping implementation.
  • The CC8531RHAT is specified to operate over a temperature range of -40°C to +85°C and a supply voltage range of 2.2 V to 3.6 V. However, performance may vary outside of these ranges, and engineers should consider temperature and voltage compensation in their design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC8531RHAT Overview

Use the download button to access the CC8531RHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC853, or try a keyword search, such as Other Telecom ICs
