CCE4502CB3.3B-QFN footprint, schematic symbol and 3D model by Renesas Electronics

CCE4502CB3.3B-QFN - Renesas Electronics

Description: The CCE4502 is a highly integrated device-side IO-Link compliant transceiver IC. The built-in hardware-based IO-Link frame handler provides full IO-Link protocol handling facilities making it simple to connect a host microcontroller via the UART interface. The comprehensive function set includes LDOs and step-down DC/DC converter, on-chip oscillators and a user SPI interface for configuration and read back of fault indicators. The output stage provides overcurrent, reverse polarity and thermal protection an

Download CCE4502CB3.3B-QFN Model

Schematic
symbols

PCB
footprints

3D
models

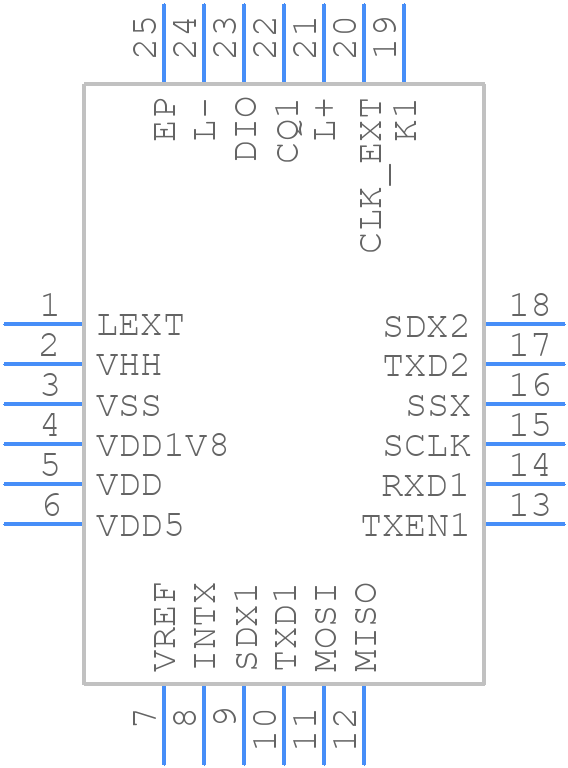

Symbol

click to zoom

PCB Footprints

CCE4502CB3.3B-QFN - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN24-ren1

click to zoom

3D Models

CCE4502CB3.3B-QFN - Renesas Electronics - 3D model - Quad Flat No-Lead - QFN24-ren1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CCE4502CB3.3B-QFN
Part Number CCE4502CB3.3B-QFN
Manufacturer Renesas Electronics
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN24-ren1
Released Date Jul 23, 2022
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

CCE4502CB3.3B-QFN Details

Manufacturer Part Number:
CCE4502CB3.3B-QFN
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

CCE4502CB3.3B-QFN Overview

Use the download button to access the CCE4502CB3.3B-QFN schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CCE45, or try a keyword search, such as Other Interface ICs
