CCE4510 48QFN footprint, schematic symbol and 3D model by Renesas Electronics

CCE4510 48QFN - Renesas Electronics

Description: IO-Link is a standardized, serial, bidirectional point-to-point connection for signal transmission and power supply under any networks, fieldbuses or backplane buses. The CCE4510 is a highly integrated IO-Link Master Phy IC providing two IO-Link compliant channels with 1A peak driving current. The built-in IO-Link hardware frame handler significantly improves application performance by automating most of the lower layer communication tasks. By reducing the microcontroller load, CCE4510 frees up valuable pro

Download CCE4510 48QFN Model

Schematic
symbols

PCB
footprints

3D
models

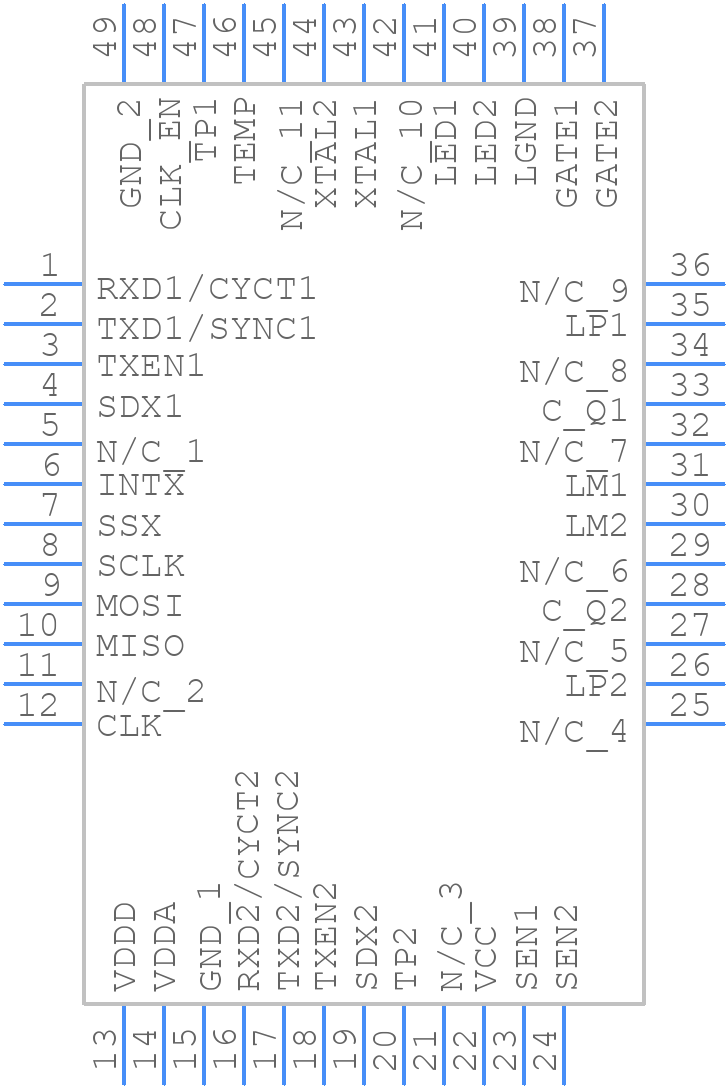

Symbol

click to zoom

PCB Footprints

CCE4510 48QFN - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48 Ld 7x7 QFN--18JULY

click to zoom

3D Models

CCE4510 48QFN - Renesas Electronics - 3D model - Quad Flat No-Lead - 48 Ld 7x7 QFN--18JULY

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CCE4510 48QFN
Part Number CCE4510 48QFN
Manufacturer Renesas Electronics
Pin Count 49
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 48 Ld 7x7 QFN--18JULY
Released Date Jul 18, 2022
Last Modified Date Jan 29, 2025 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

CCE4510 48QFN Details

Manufacturer Part Number:
CCE4510 48QFN
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

CCE4510 48QFN Overview

Use the download button to access the CCE4510 48QFN schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CCE45, or try a keyword search, such as Other Interface ICs
