CCS050M12CM2 - Wolfspeed

Description: Dual N-chan SiC MOSFET Module 1200V 59A

Download CCS050M12CM2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

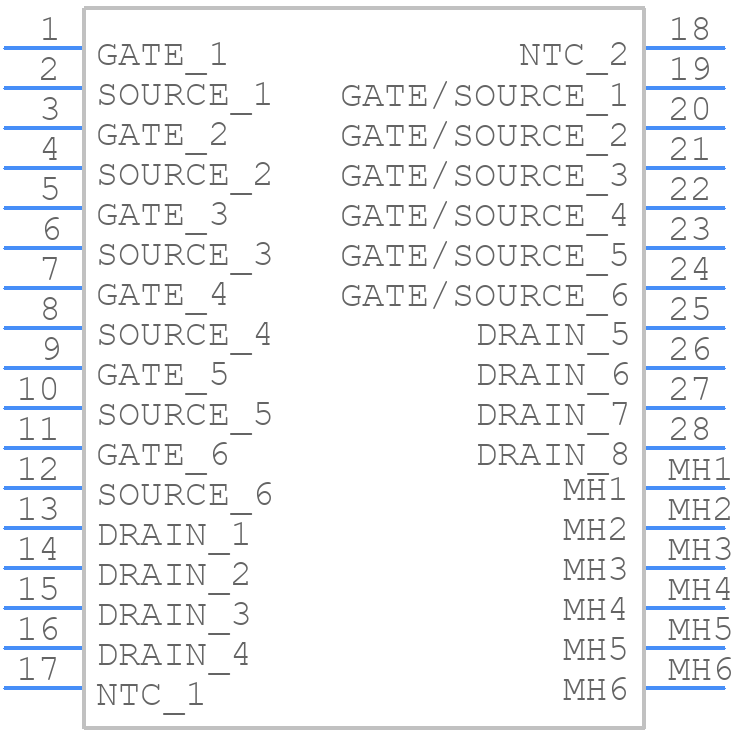

CCS050M12CM2 - Wolfspeed - PCB symbol
click to zoom
PCB Footprints

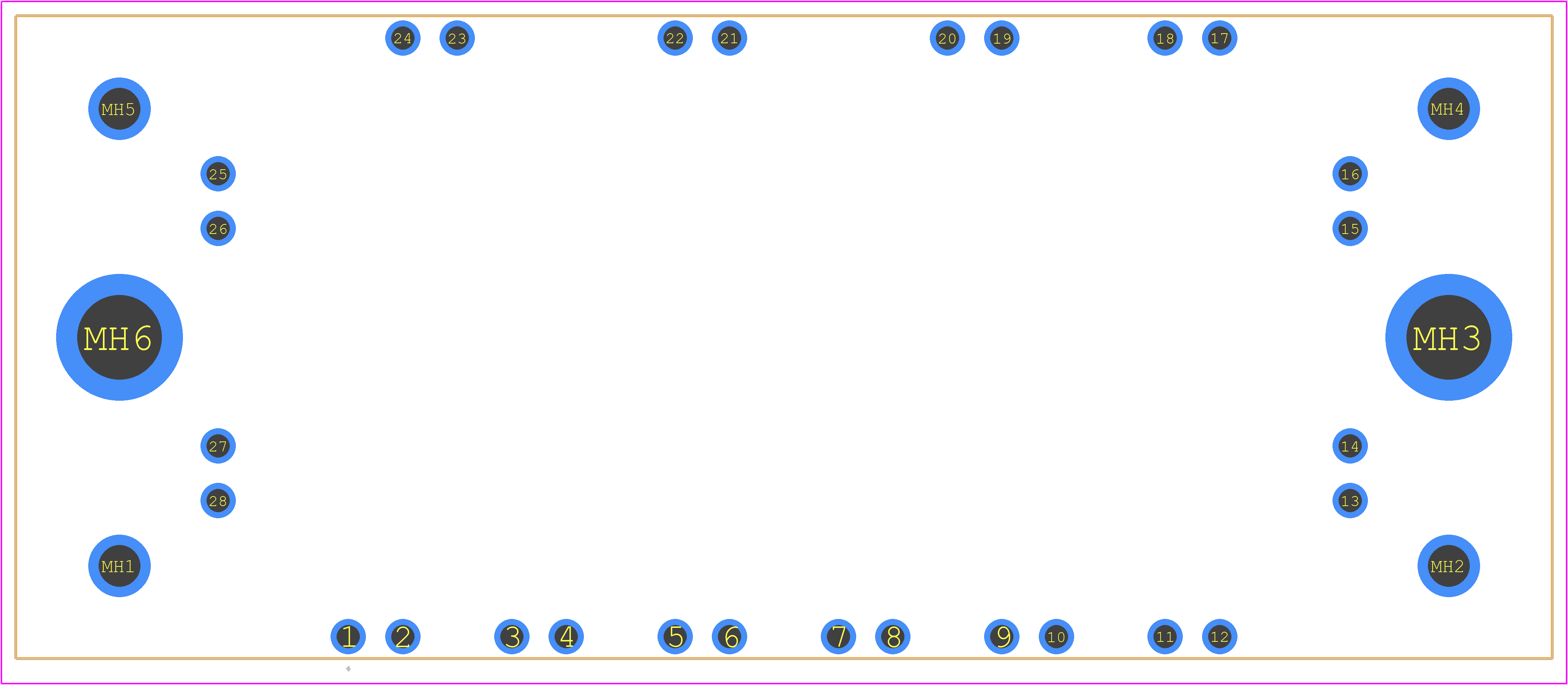

CCS050M12CM2 - Wolfspeed PCB footprint - Other - Other - CCS050M12CM2-3
click to zoom
3D Models
CCS050M12CM2 - Wolfspeed - 3D model - Other - CCS050M12CM2-3
click to zoom

CCS050M12CM2 Details

  • Manufacturer Part Number:

    CCS050M12CM2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE-28

  • ECCN Code:

    EAR99

  • Manufacturer:

    Wolfspeed

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Configuration:

    3 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • DS Breakdown Voltage-Min:

    1200 V

  • Drain Current-Max (ID):

    87 A

  • Drain-source On Resistance-Max:

    0.036 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-XUFM-X28

  • Number of Elements:

    6

  • Number of Terminals:

    28

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    250 A

  • Reference Standard:

    IEC-60747-8-4

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

CCS050M12CM2 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a thermal via array underneath the device is recommended. The thermal vias should be connected to a solid copper plane on the bottom layer to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended PCB layout. Also, derate the device's power handling capability according to the temperature derating curve provided in the datasheet.
  • A gate drive circuit with a high current capability (e.g., 1-2 A) and a fast rise/fall time (e.g., <10 ns) is recommended. A gate resistor value between 10-20 ohms is suitable for most applications.
  • Use a TVS diode or a zener diode for overvoltage protection. For overcurrent protection, use a fuse or a current sense resistor with a monitoring circuit. Ensure the protection circuitry is designed to respond quickly to fault conditions.
  • Use a wire bonding technique with a gold or aluminum wire (25-30 um diameter) and a bonding force of 1-2 grams. For soldering, use a solder with a melting point above 260°C and follow the recommended reflow profile.
