CD-12PMMP-LC7001 - Amphenol

Description: Standard Circular Connector PANEL LCOK 12PIN M CONN M PIN

Download CD-12PMMP-LC7001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CD-12PMMP-LC7001 - Amphenol - PCB symbol
click to zoom
PCB Footprints

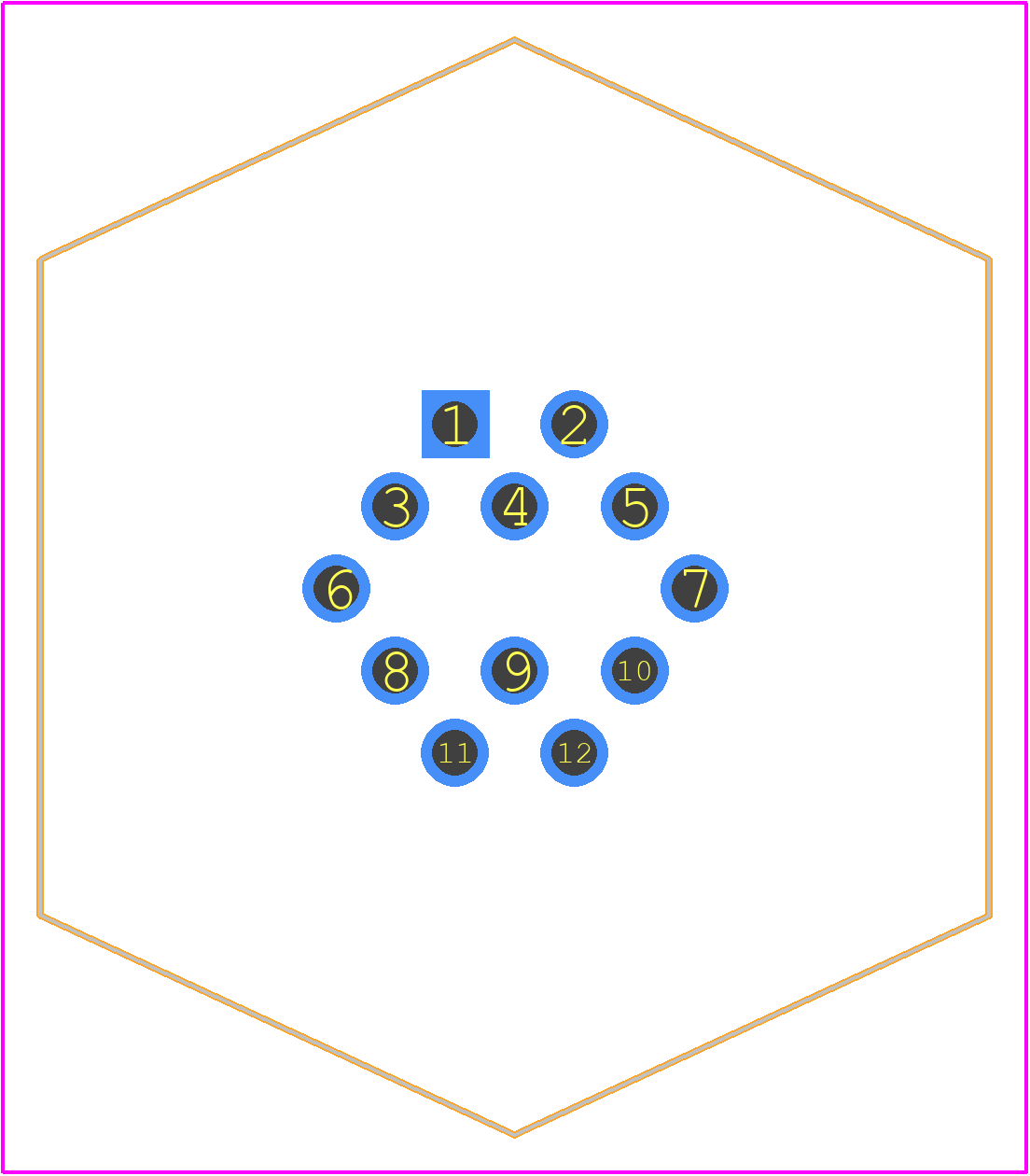

CD-12PMMP-LC7001 - Amphenol PCB footprint - Other - Other - CD-12PMMP-LC7001-1
click to zoom

CD-12PMMP-LC7001 Details

  • Manufacturer Part Number:

    CD-12PMMP-LC7001

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Amphenol Corporation

  • Connector Type:

    CIRCULAR CONNECTOR

CD-12PMMP-LC7001 Frequently Asked Questions (FAQs)

  • The recommended torque value for mating and unmating the CD-12PMMP-LC7001 connector is 10-12 in-lbs (1.1-1.4 Nm). However, it's essential to consult the specific application requirements and follow the recommended torque values provided by Amphenol Corporation or the system designer.
  • Yes, the CD-12PMMP-LC7001 connector is designed to withstand high-vibration environments. It meets the requirements of MIL-DTL-38999, which includes vibration testing. However, it's crucial to ensure that the connector is properly installed, mated, and secured to maintain its performance in high-vibration environments.
  • The CD-12PMMP-LC7001 connector is designed to operate in a wide temperature range (-65°C to 200°C) and can withstand exposure to various chemicals. However, it's essential to consult the datasheet and Amphenol Corporation's recommendations for specific environmental conditions to ensure the connector's performance and reliability.
  • The CD-12PMMP-LC7001 connector is rated for a minimum of 500 mating cycles. However, the actual number of mating cycles may vary depending on the application, environment, and usage. It's recommended to consult Amphenol Corporation's documentation and follow their guidelines for connector maintenance and replacement.
  • The CD-12PMMP-LC7001 connector is designed to meet the MIL-DTL-38999 standard, which ensures compatibility with other connectors from different manufacturers that also meet this standard. However, it's essential to verify the compatibility of specific connectors and consult with Amphenol Corporation or the system designer to ensure proper mating and performance.
