CD14538BPWRG4 - Texas Instruments

Description: Monostable Multivibrator Dual 16-Pin TSSOP T/R

Download CD14538BPWRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

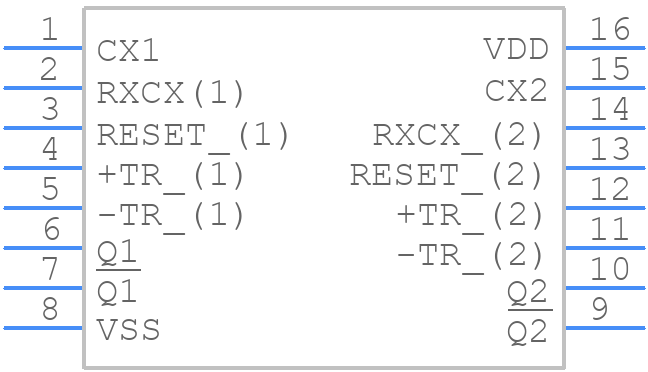

CD14538BPWRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CD14538BPWRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
CD14538BPWRG4 - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

CD14538BPWRG4 Details

  • Manufacturer Part Number:

    CD14538BPWRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    RETRIGGERABLE

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    MONOSTABLE MULTIVIBRATOR

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Data/Clock Inputs:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    3 mA

  • Propagation Delay (tpd):

    600 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

CD14538BPWRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended for optimal heat dissipation.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature. The device is rated for operation up to 125°C, but derating may be necessary for extended reliability.
  • The CD14538BPWRG4 is capable of delivering up to 1.5 A of output current per channel. However, the maximum output current is dependent on the input voltage, output voltage, and thermal conditions. Be sure to check the datasheet for specific current limitations and thermal derating guidelines.
  • The CD14538BPWRG4 has built-in OCP and SCP features. To implement these features, connect the OCP pin to a resistor divider network that sets the current limit threshold. For SCP, connect the SCP pin to a capacitor that sets the short-circuit detection time. Refer to the datasheet for specific implementation guidelines and component values.
  • Texas Instruments recommends using a low-ESR ceramic capacitor with a value of 10 μF to 22 μF for the input capacitor. This helps to filter out input noise and ensure stable operation. A X5R or X7R dielectric type is recommended for its low temperature coefficient and high reliability.
