CD15ED750JO3F - Cornell Dubilier

Description: Cornell-Dubilier 75pF 500 V dc Radial Mica Capacitor CD15 ±5%

Download CD15ED750JO3F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CD15ED750JO3F - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

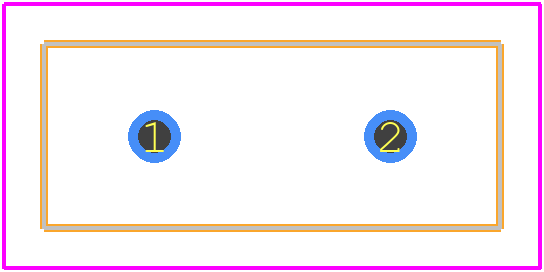

CD15ED750JO3F - Cornell Dubilier PCB footprint - Other - Other - CD15ED750JO3F-1
click to zoom

CD15ED750JO3F Details

  • Manufacturer Part Number:

    CD15ED750JO3F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.20

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    5

  • Capacitance:

    0.000075 µF

  • Capacitor Type:

    MICA CAPACITOR

  • Dielectric Material:

    MICA

  • Height:

    9.1 mm

  • JESD-609 Code:

    e3

  • Length:

    11.4 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    500 V

  • Surface Mount:

    NO

  • Temperature Coefficient:

    -20/+100ppm/Cel ppm/°C

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Pitch:

    5.9 mm

  • Terminal Shape:

    WIRE

  • Width:

    4.6 mm

CD15ED750JO3F Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the CD15ED750JO3F is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the CD15ED750JO3F capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The derating curve for the CD15ED750JO3F capacitor is typically provided by the manufacturer upon request. It shows the reduction in capacitance and voltage rating as a function of temperature and frequency.
  • Yes, the CD15ED750JO3F capacitor is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality materials and manufacturing process.
  • The shelf life of the CD15ED750JO3F capacitor is typically 2 years from the date of manufacture, but it's recommended to follow the manufacturer's storage guidelines to ensure the capacitor remains within its specifications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CD15ED750JO3F Overview

Use the download button to access the CD15ED750JO3F schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CD15E, or try a keyword search, such as Mica Capacitors
