CD22M3494SQZ - Renesas Electronics

CD22M3494SQZ Details

• Manufacturer Part Number:

  CD22M3494SQZ

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

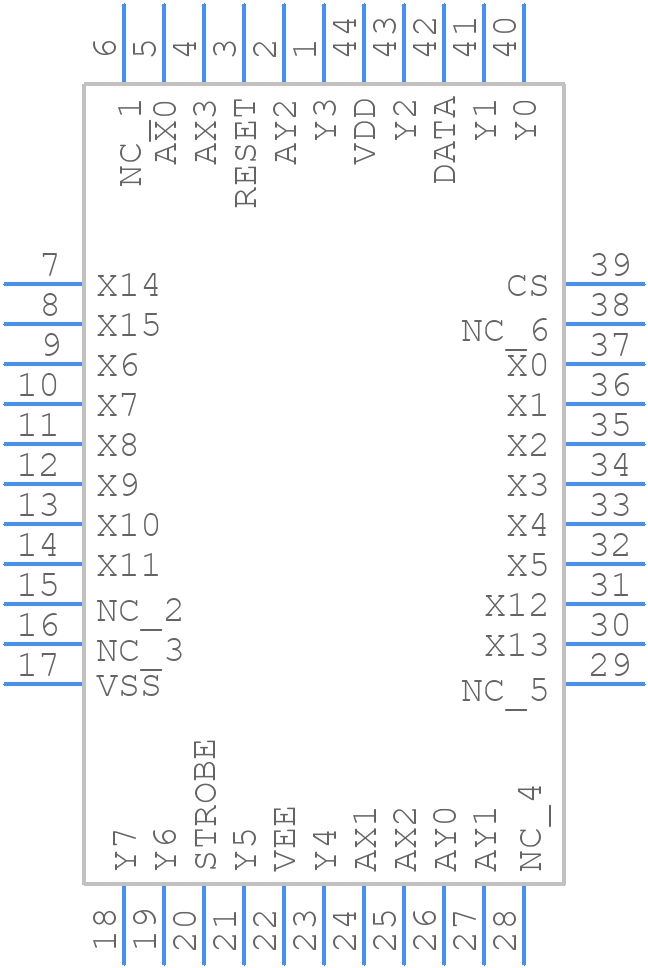

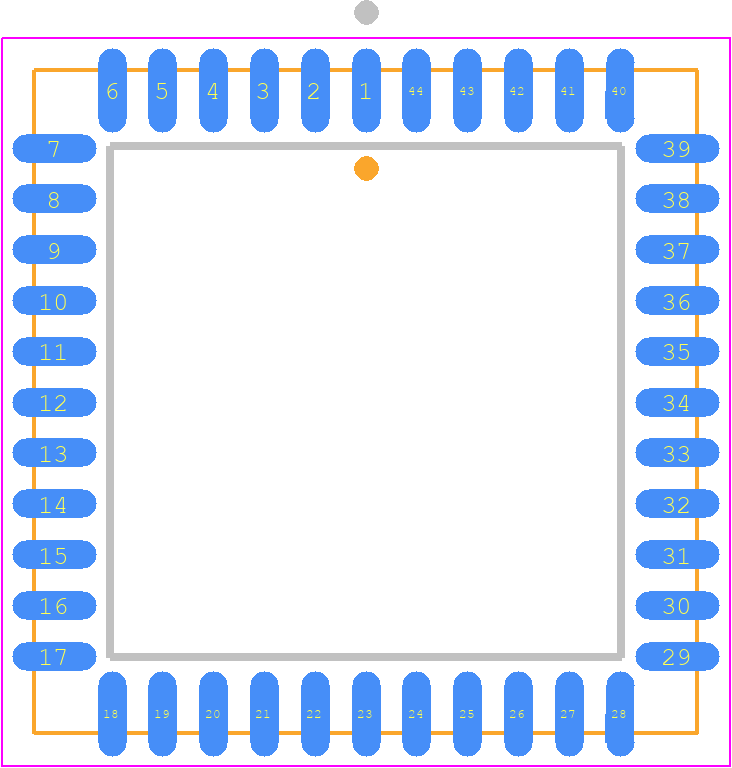

• Part Package Code:

  PLCC

• Package Description:

  LCC-44

• Pin Count:

  44

• Manufacturer Package Code:

  N44.65

• Country Of Origin:

  Malaysia, Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  18 Weeks

• Date Of Intro:

  2017-09-19

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  7

• Analog IC - Other Type:

  CROSS POINT SWITCH

• JESD-30 Code:

  S-PQCC-J44

• JESD-609 Code:

  e3

• Length:

  16.585 mm

• Moisture Sensitivity Level:

  3

• Number of Channels:

  16

• Number of Functions:

  1

• Number of Terminals:

  44

• Off-state Isolation-Nom:

  95 dB

• On-state Resistance Match-Nom:

  6 Ω

• On-state Resistance-Max (Ron):

  65 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC44,.7SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  245

• Seated Height-Max:

  4.57 mm

• Supply Current-Max (Isup):

  5 mA

• Supply Voltage-Max (Vsup):

  15 V

• Supply Voltage-Min (Vsup):

  4 V

• Supply Voltage-Nom (Vsup):

  12 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  100 ns

• Switch-on Time-Max:

  30 ns

• Technology:

  BIMOS

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  16.585 mm
