CD4001BF - Texas Instruments

Description: TEXAS INSTRUMENTS - CD4001BF - CMOS LOGIC INTEGRATED CIRCUITS GATES-NOR/NAND

Download CD4001BF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

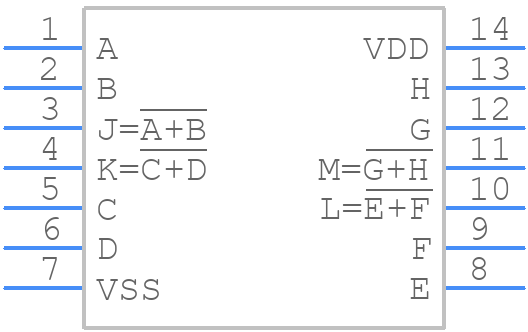

CD4001BF - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CD4001BF - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - J0014A_2021
click to zoom
3D Models
CD4001BF - Texas Instruments - 3D model - Ceramic Dual-In-Line Packages - J0014A_2021
click to zoom

CD4001BF Details

  • Manufacturer Part Number:

    CD4001BF

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-CDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    19.56 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NOR GATE

  • Max I(ol):

    0.0015 A

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    0.03 mA

  • Prop. Delay@Nom-Sup:

    250 ns

  • Propagation Delay (tpd):

    250 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

CD4001BF Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the CD4001BF is typically around 10 MHz, but this can vary depending on the specific application and operating conditions.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking and ensuring good airflow around the device. Additionally, the device should be operated within its recommended temperature range of -55°C to 125°C.
  • It's recommended to use a 0.1 μF ceramic capacitor between the VCC pin and GND pin to decouple the power supply and reduce noise. Additionally, a 10 μF electrolytic capacitor can be used in parallel to further filter the power supply.
  • Yes, the CD4001BF can be used in both 3.3V and 5V systems. However, the device's input voltage threshold and output voltage levels will vary depending on the supply voltage. Refer to the datasheet for specific voltage threshold and output voltage levels at different supply voltages.
  • Unused inputs on the CD4001BF should be tied to a fixed logic level (either VCC or GND) to prevent floating inputs and ensure proper device operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CD4001BF Overview

Use the download button to access the CD4001BF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD400, or try a keyword search, such as Gates

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
