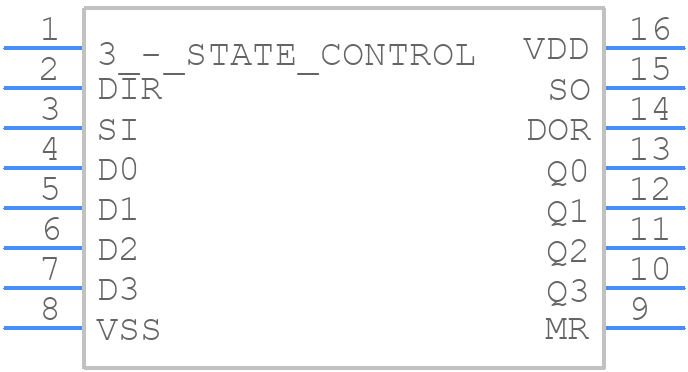

CD40105BDMSR - Renesas Electronics

CD40105BDMSR Details

• Manufacturer Part Number:

  CD40105BDMSR

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SBDIP

• Package Description:

  METAL SEALED, CERAMIC, DIP-16

• Pin Count:

  16

• Manufacturer Package Code:

  D16.3

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.71

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Additional Feature:

  INPUT AC PARAMETRIC VALUES NOT FROM POST RADIATION MEASUREMENT; REGISTER BASED

• Cycle Time:

  900.9 ns

• JESD-30 Code:

  R-CDIP-T16

• JESD-609 Code:

  e4

• Memory Density:

  64 bit

• Memory Width:

  4

• Number of Functions:

  1

• Number of Terminals:

  16

• Number of Words:

  16 words

• Number of Words Code:

  16

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Organization:

  16X4

• Output Enable:

  YES

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Parallel/Serial:

  PARALLEL

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Gold (Au)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Dose:

  100k Rad(Si) V

• Width:

  7.62 mm
