The recommended operating voltage range for the CD4041UBMT is 4.5V to 15.5V, as specified in the datasheet. However, it's essential to note that the output voltage swing is dependent on the supply voltage, and the device may not function correctly if the supply voltage is too close to the minimum or maximum recommended values.
To minimize the impact of noise or oscillations on the CD4041UBMT's output, it's recommended to use a decoupling capacitor (typically 0.1uF to 1uF) between the VCC and GND pins, and to keep the output traces as short as possible. Additionally, using a low-pass filter or a buffer stage can help to further reduce the impact of noise on the output signal.
The CD4041UBMT is a CMOS device, and its maximum operating frequency is dependent on the supply voltage and load capacitance. As a general guideline, the device can operate up to 10MHz with a 5pF load capacitance and a 10V supply voltage. However, it's essential to consult the datasheet and perform simulations or testing to determine the maximum frequency for a specific application.
Yes, the CD4041UBMT can be used as a level shifter or voltage translator. Since it's a CMOS device, it can translate logic levels between different voltage domains. For example, you can use it to translate 3.3V logic signals to 5V logic signals or vice versa. Be sure to check the datasheet for specific guidelines on voltage translation and level shifting.
When the input pins of the CD4041UBMT are not in use, it's recommended to tie them to either VCC or GND through a suitable resistor (typically 1kΩ to 10kΩ). This helps to prevent unwanted oscillations or noise from affecting the device's operation. Leaving the input pins floating can lead to unpredictable behavior or increased power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CD4041UBMT Overview

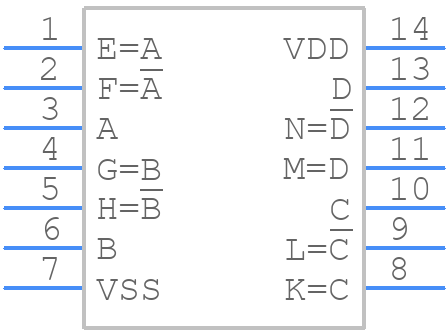

Use the download button to access the CD4041UBMT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD404,
or try a keyword search, such as Gates
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
