Part Image

CD4053BM - Texas Instruments

Description: CMOS triple 2-channel analog multiplexer & demultiplexer with logic-level conversion

Download CD4053BM Model

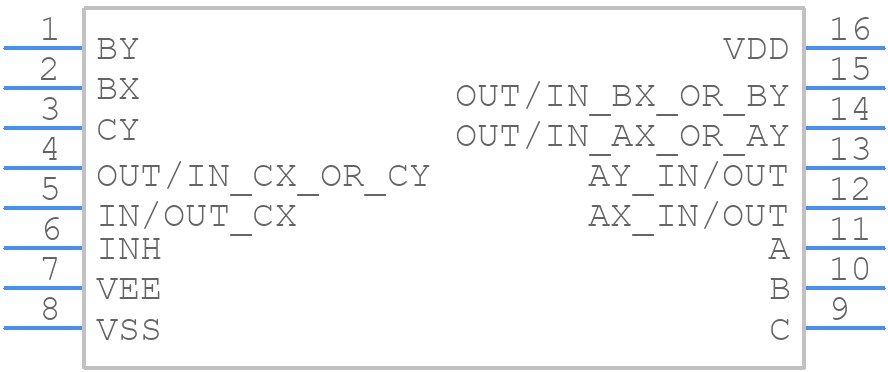

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CD4053BM - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - CD4053BM_11
click to zoom
3D Models
CD4053BM - Texas Instruments  - 3D model - Small Outline Packages - CD4053BM_11
click to zoom

CD4053BM Details

  • Manufacturer Part Number:

    CD4053BM

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Lifetime Buy

  • Part Package Code:

    DIP

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0.98

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • Bandwidth-Nom:

    30 MHz

  • Input Voltage-Max:

    20.5 V

  • Input Voltage-Min:

    -0.5 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NC

  • Number of Channels:

    3

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    40 dB

  • On-state Resistance Match-Nom:

    15 Ω

  • On-state Resistance-Max (Ron):

    1050 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    720 ns

  • Switch-on Time-Max:

    720 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CD4053BM Overview

Use the download button to access the CD4053BM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD405, or try a keyword search, such as Multiplexers or Switches

Parts related to CD4053BM

Showing 0 results

CD4053BM Alternates

Showing results

Image Part Number Model
Part Image HCF4053M013TR STMicroelectronics

TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, SO-16

Part Image CD4053BM96E4 Texas Instruments

20-V, 2:1 (SPDT), 3-channel analog multiplexer with logic-level conversion 16-SOIC -55 to 125

Part Image HCF4053BM1 STMicroelectronics

TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, SO-16

Part Image CD4053BME4 Texas Instruments

TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16

Part Image CD4053BM National Semiconductor Corporation

Single-Ended Multiplexer, 3 Func, 2 Channel, PDIP16

For a full list of alternate parts for CD4053BM, check out Findchips.com
