CD4053BQM96Q1 - Texas Instruments

Description: Automotive CMOS triple 2-channel analog multiplexer & demultiplexer with logic-level conversion

Download CD4053BQM96Q1 Model

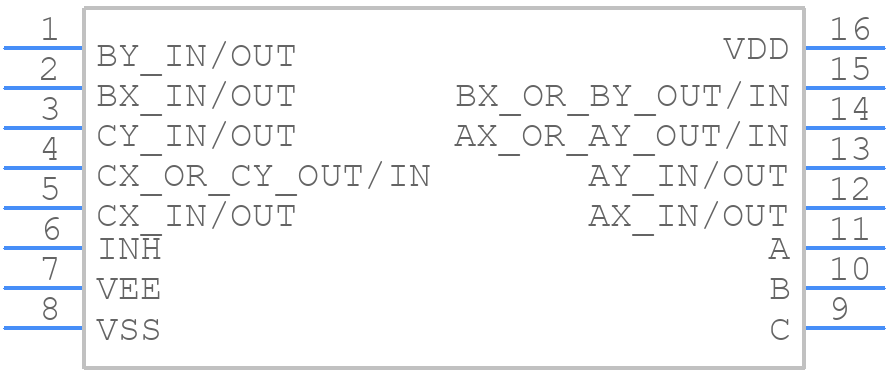

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CD4053BQM96Q1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
CD4053BQM96Q1 - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

CD4053BQM96Q1 Details

  • Manufacturer Part Number:

    CD4053BQM96Q1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Additional Feature:

    Configuration : 2:1 SPDT

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • Bandwidth-Nom:

    30 MHz

  • Input Voltage-Max:

    20.5 V

  • Input Voltage-Min:

    -0.5 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -10 V

  • Neg Supply Voltage-Min (Vsup):

    -2.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NC

  • Number of Channels:

    3

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    40 dB

  • On-state Resistance Match-Nom:

    15 Ω

  • On-state Resistance-Max (Ron):

    1050 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.01 A

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    720 ns

  • Switch-on Time-Max:

    720 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

CD4053BQM96Q1 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the CD4053BQM96Q1 is typically around 10 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
  • To ensure proper power sequencing, it's recommended to power up the VCC pin before the analog signal inputs, and to power down the VCC pin after the analog signal inputs. This helps to prevent latch-up and damage to the device.
  • The recommended layout and routing for the CD4053BQM96Q1 involves keeping the analog signal traces short and away from digital signal traces, using a solid ground plane, and minimizing parasitic capacitance and inductance. It's also recommended to follow the layout guidelines provided in the datasheet and application notes.
  • To handle ESD protection when using the CD4053BQM96Q1, it's recommended to use ESD protection devices such as TVS diodes or ESD arrays on the input pins, and to follow proper handling and storage procedures to prevent ESD damage.
  • The thermal derating of the CD4053BQM96Q1 is typically around 5.5 mW/°C above 25°C, which means that the device's power dissipation rating decreases as the operating temperature increases. It's recommended to consult the datasheet and thermal design guidelines for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CD4053BQM96Q1 Overview

Use the download button to access the CD4053BQM96Q1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD405, or try a keyword search, such as Multiplexers or Switches

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
