The maximum operating frequency of the CD4056BEE4 is typically around 1 MHz, but it can vary depending on the specific application, supply voltage, and load conditions.
To ensure proper power sequencing, it's recommended to sequence the power supplies in the following order: VCC, then VDD, and finally the input signals. This helps prevent latch-up and ensures reliable operation.
A 0.1 μF to 1 μF ceramic decoupling capacitor is recommended, placed as close as possible to the VCC and VDD pins. This helps to filter out noise and ensure stable operation.
Yes, the CD4056BEE4 can operate with a supply voltage range of 3V to 18V. However, the output voltage swing and logic levels will be dependent on the supply voltage. For 3.3V or 5V operation, ensure that the input signals are compatible with the reduced voltage levels.
The enable input (EN) is active-low, meaning that the device is enabled when EN is low. When EN is high, the device is in a high-impedance state, and the outputs are disconnected from the bus. Ensure that the EN signal is properly driven and decoupled to prevent unwanted enable/disable transitions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CD4056BEE4 Overview

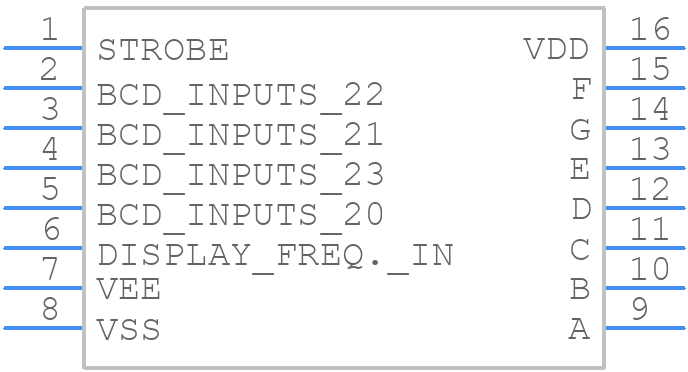

Use the download button to access the CD4056BEE4 schematic symbol, PCB footprint, and 3D model.
