The CD4067BME4 can operate up to 100 MHz, but the maximum frequency of operation depends on the specific application and the quality of the signal being switched. It's recommended to consult the datasheet and perform simulations to determine the maximum frequency for a specific use case.
To ensure low distortion and low insertion loss, it's essential to follow proper PCB layout and design practices, such as using a solid ground plane, minimizing trace lengths, and using impedance-matched transmission lines. Additionally, selecting the correct termination resistors and ensuring proper power supply decoupling can also help minimize distortion and insertion loss.
Yes, the CD4067BME4 can be used as both a multiplexer and demultiplexer. As a multiplexer, it can select one of four input signals and route it to a single output. As a demultiplexer, it can take a single input signal and route it to one of four output channels.
The maximum power dissipation for the CD4067BME4 is 500 mW. However, this value can vary depending on the operating conditions, such as temperature and supply voltage. It's essential to consult the datasheet and perform thermal analysis to ensure the device operates within its recommended power dissipation limits.
To handle ESD protection when using the CD4067BME4, it's recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the device in an ESD-protected environment. Additionally, incorporating ESD protection devices, such as TVS diodes or ESD protection arrays, into the design can help protect the CD4067BME4 from ESD events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CD4067BME4 Overview

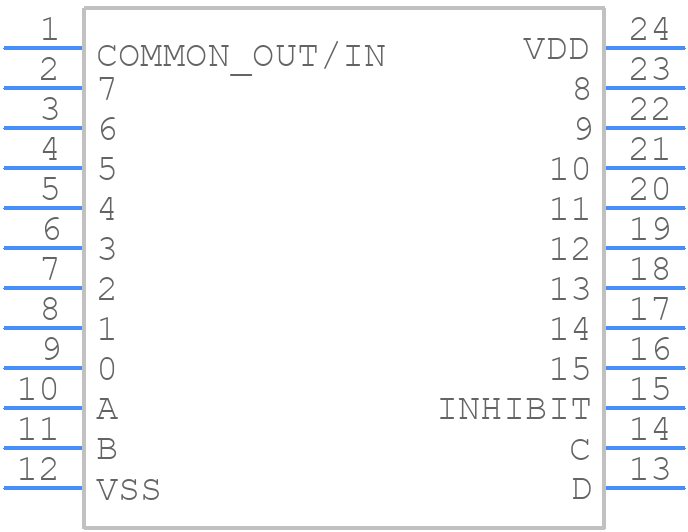

Use the download button to access the CD4067BME4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD406,
or try a keyword search, such as Multiplexers or Switches
