CD4071BF - Texas Instruments

Description: OR Gate 4-Element 2-IN CMOS 14-Pin CDIP Tube

Download CD4071BF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

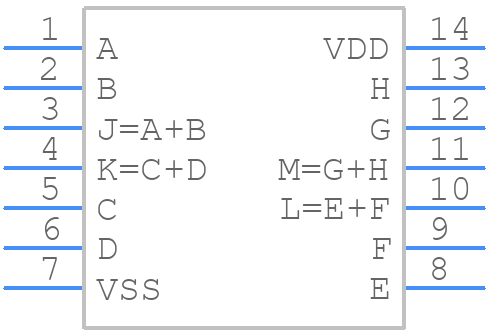

CD4071BF - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CD4071BF - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - J0014A
click to zoom
3D Models
CD4071BF - Texas Instruments - 3D model - Ceramic Dual-In-Line Packages - J0014A
click to zoom

CD4071BF Details

  • Manufacturer Part Number:

    CD4071BF

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    4

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-GDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    19.56 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    OR GATE

  • Max I(ol):

    0.0015 A

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    OPEN-COLLECTOR

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    0.03 mA

  • Prop. Delay@Nom-Sup:

    250 ns

  • Propagation Delay (tpd):

    250 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    6.67 mm

CD4071BF Frequently Asked Questions (FAQs)

  • The CD4071BF can operate up to 10 MHz, but this frequency may vary depending on the specific application and operating conditions.
  • The CD4071BF requires a single power supply voltage (VCC) of 3-15V, with a recommended operating range of 5-10V. Ensure that the power supply is stable and decoupled with capacitors to minimize noise and voltage drops.
  • The input voltage threshold for the CD4071BF is typically around 1.5V, but this can vary depending on the specific application and operating conditions. It's recommended to use a voltage level shifter or buffer if the input signal is not compatible with the CD4071BF's input threshold.
  • The CD4071BF is rated for operation up to 70°C, but it can be derated for higher temperatures. However, it's recommended to consult the datasheet and application notes for specific guidance on operating the device in high-temperature environments.
  • To minimize power consumption, ensure that the CD4071BF is properly powered and that the input signals are properly terminated. You can also consider using a lower power supply voltage or implementing power-saving techniques such as clock gating or dynamic voltage scaling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CD4071BF Overview

Use the download button to access the CD4071BF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD407, or try a keyword search, such as Gates

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
