CD4093BPWG4 - Texas Instruments

Description: IC GATE NAND 4CH 2-INP 14TSSOP

Download CD4093BPWG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

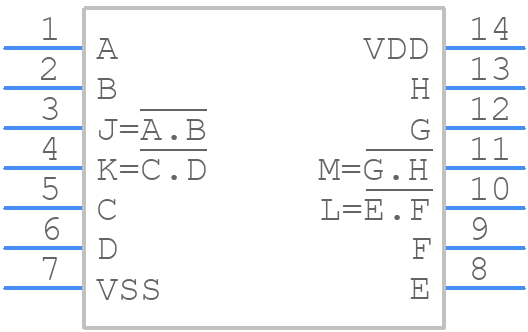

Symbol
CD4093BPWG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CD4093BPWG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
CD4093BPWG4 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

CD4093BPWG4 Details

  • Manufacturer Part Number:

    CD4093BPWG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NAND GATE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    380 ns

  • Propagation Delay (tpd):

    380 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    YES

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

CD4093BPWG4 Frequently Asked Questions (FAQs)

  • The CD4093BPWG4 is a quad 2-input NAND Schmitt trigger, and its maximum operating frequency depends on the input signal and load conditions. However, according to Texas Instruments, the typical toggle frequency is around 10 MHz at VDD = 5V and CL = 50 pF.
  • To ensure proper operation, the CD4093BPWG4 requires a stable power supply voltage (VDD) between 3V and 15V. It's also essential to decouple the power supply with a 0.1 μF ceramic capacitor and a 10 μF electrolytic capacitor to reduce noise and voltage spikes.
  • The input voltage threshold for the CD4093BPWG4 is typically around 1.5V to 2.5V, depending on the supply voltage (VDD). This means that the input signal should be above 1.5V to 2.5V to be considered a logical high, and below 1.5V to 2.5V to be considered a logical low.
  • Yes, the CD4093BPWG4 can be used as a logic inverter by tying the two inputs of each NAND gate together. This will create a NOT gate or inverter, where the output will be the logical inverse of the input.
  • Unused inputs on the CD4093BPWG4 should be tied to a logical high (VDD) or logical low (GND) to prevent them from floating and causing unwanted oscillations or noise. This will ensure stable operation and minimize power consumption.
