CD4093BQM96Q1 - Texas Instruments

Description: Automotive Catalog CMOS Quad 2-Input NAND Schmitt Triggers

Download CD4093BQM96Q1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

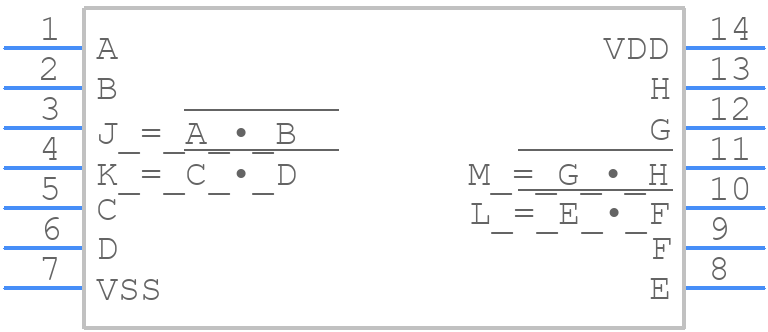

CD4093BQM96Q1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CD4093BQM96Q1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G14)
click to zoom
3D Models
CD4093BQM96Q1 - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G14)
click to zoom

CD4093BQM96Q1 Details

  • Manufacturer Part Number:

    CD4093BQM96Q1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NAND GATE

  • Max I(ol):

    0.0068 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.6 mA

  • Prop. Delay@Nom-Sup:

    380 ns

  • Propagation Delay (tpd):

    380 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    YES

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

CD4093BQM96Q1 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the CD4093BQM96Q1 is typically around 10 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking and ensuring good airflow around the device. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
  • The recommended power-on sequence for the CD4093BQM96Q1 is to apply the power supply voltage (VCC) before applying any input signals. This helps prevent unwanted latch-up or oscillation during power-up.
  • To minimize power consumption, consider using a low-power mode or shutdown feature if available, reducing the clock frequency, and optimizing the design to minimize switching activity. Additionally, consider using a low-dropout regulator (LDO) to reduce power consumption.
  • Key considerations for PCB layout and design when using the CD4093BQM96Q1 include minimizing signal trace lengths, using a solid ground plane, and avoiding signal routing near the device's power pins. Additionally, consider using a 4-layer PCB with a dedicated power plane to reduce noise and improve signal integrity.
