CD4097BPW - Texas Instruments

Description: CMOS Analog Multiplexer/Demultiplexer

Download CD4097BPW Model
Schematic
symbols

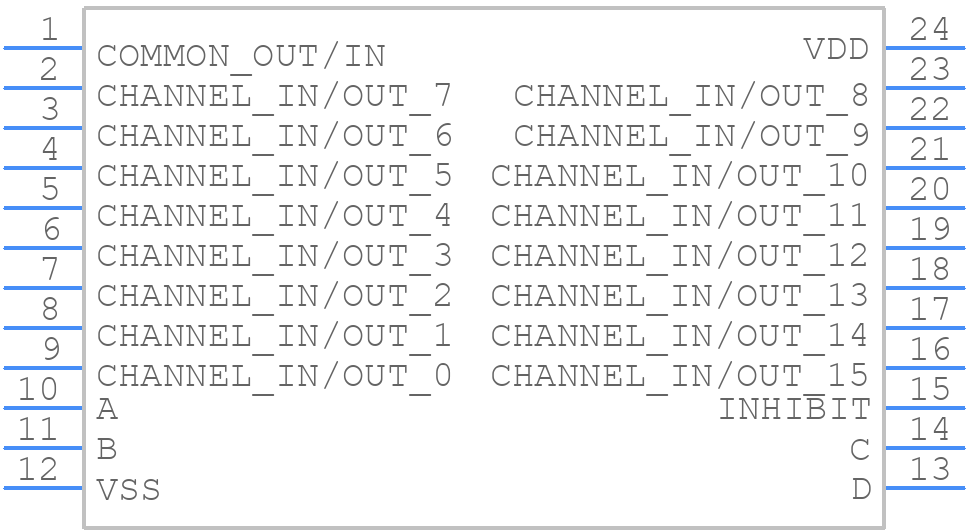

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CD4097BPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0024A
click to zoom
3D Models
CD4097BPW - Texas Instruments  - 3D model - Small Outline Packages - PW0024A
click to zoom

CD4097BPW Details

  • Manufacturer Part Number:

    CD4097BPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Additional Feature:

    Configuration : 8:1

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • Bandwidth-Nom:

    20 MHz

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On-state Resistance Match-Nom:

    15 Ω

  • On-state Resistance-Max (Ron):

    1050 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    0.6 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    440 ns

  • Switch-on Time-Max:

    650 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

CD4097BPW Frequently Asked Questions (FAQs)

  • The CD4097BPW is a CMOS-based device, and its maximum operating frequency is typically limited by the clock frequency of the input signals. According to Texas Instruments, the maximum clock frequency is around 10 MHz, but this can vary depending on the specific application and operating conditions.
  • To ensure reliable operation of the CD4097BPW in high-temperature environments, it's essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive package, and ensuring that the device is operated within its recommended temperature range (-40°C to 85°C). Additionally, consider using a device with a higher temperature rating, such as the CD4097BQW, which is rated for operation up to 125°C.
  • The recommended power-on sequence for the CD4097BPW is to apply the power supply voltage (VDD) before applying the clock signal. This ensures that the internal circuitry is properly initialized and that the device operates correctly. It's also essential to ensure that the power supply voltage is stable and within the recommended range (3V to 15V) before applying the clock signal.
  • To minimize electromagnetic interference (EMI) when using the CD4097BPW, follow proper PCB design practices, such as using a ground plane, keeping signal traces short, and using shielding where necessary. Additionally, consider using EMI-filtering components, such as ferrite beads or common-mode chokes, to reduce radiated emissions. It's also essential to ensure that the device is properly decoupled and that the power supply is well-regulated.
  • The recommended layout and routing for the CD4097BPW involves keeping the signal traces short and direct, avoiding sharp corners and right-angle bends, and using a consistent impedance throughout the signal path. It's also essential to keep the power supply and ground traces separate and to use a solid ground plane to reduce noise and electromagnetic interference.
